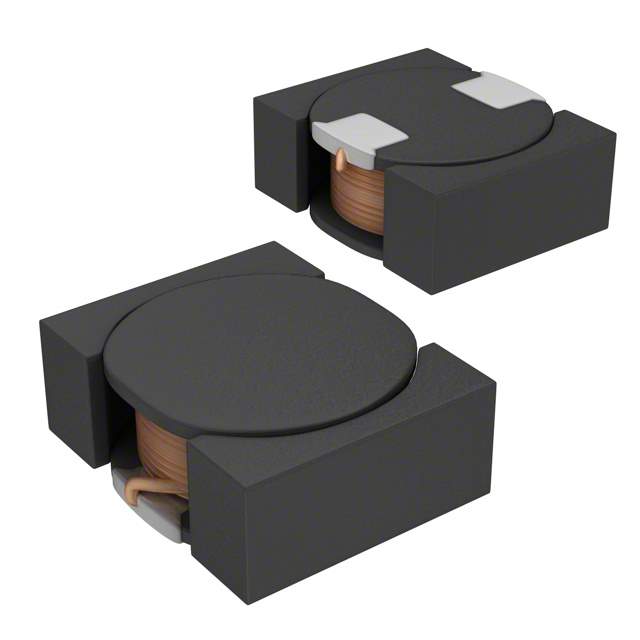

VLF403215MT-1R0N-CA Real Image
Same model may have multiple batches, images only for reference.

VLF403215MT-1R0N-CA

Part No VLF403215MT-1R0N-CA
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 1UH 3.56A 31 MOHM SMD / Inductor Power Shielded Wirewound 1uH 30% 1MHz Ferrite 3.56A 0.031Ohm DCR Automotive T/R
Datasheet
VLF403215MT-1R0N-CA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Series VLF-M-CA
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 1μH
Tolerance ±30%
Current Rating 3.56A
Current - Saturation 3.01A
Shielding Shielded
DC Resistance (DCR) 31 mOhm Max
Operating Temperature Range -40°C ~ 105°C
Test Frequency 1MHz
Mounting SMD
Package Nonstandard
Dimension 0.157" L x 0.126" W (4.00mm x 3.20mm)
Height - Seated (Maximum) 0.059" (1.50mm)
Win Source Part Number 799107-VLF403215MT-1R0N-CA
Popularity Medium
Supply and Demand Status Balance
Family Name VLF-M
ECCN EAR99
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian VLF403215MT-1R0N-CA CAD Model

Description

The TDK Corporation VLF403215MT-1R0N-CA is a wirewound type inductor manufactured by TDK Corporation.

  • Series: VLF-M
  • Structure: Shielded
  • Inductance: 1μH
  • Current Rating: 3.56A
  • Tolerance: ±30%
  • Dimensions: 0.157" L x 0.126" W (4.00mm x 3.20mm)
  • Package: Nonstandard
  • Applications: Inductors, Coils, Chokes
  • Supply and Demand Status: Balance
