Same model may have multiple batches, images only for reference.

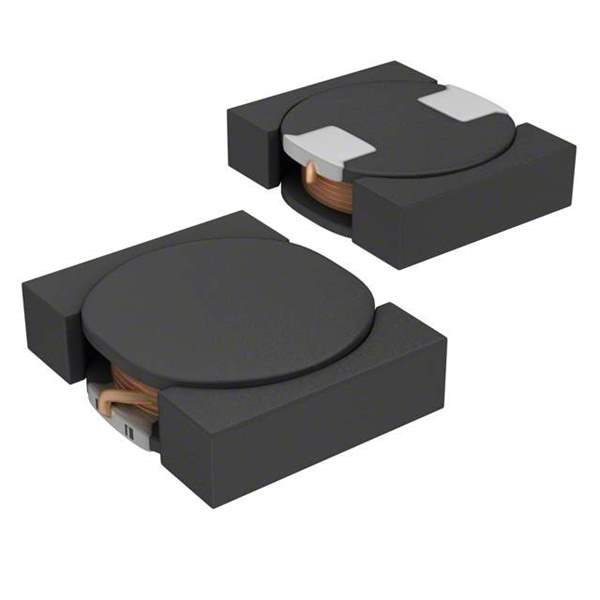

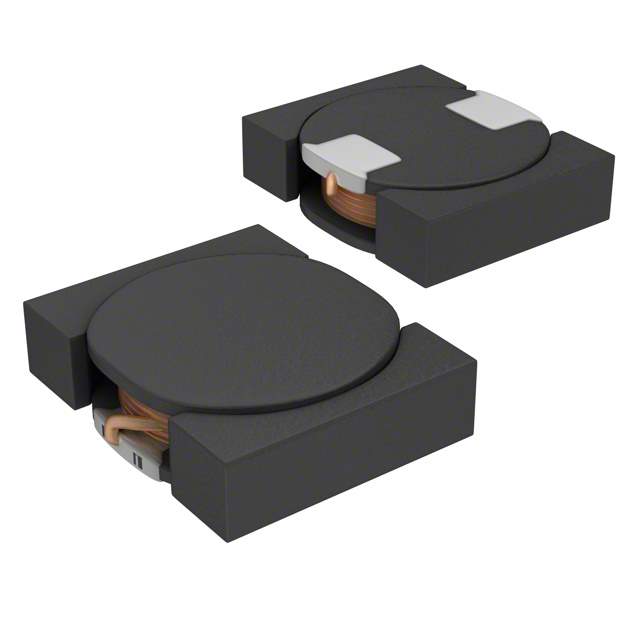

VLF403210MT-2R2M Real Image
Same model may have multiple batches, images only for reference.

VLF403210MT-2R2M

Part No VLF403210MT-2R2M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 2.2UH 2.33A 66MOHM SMD / 2.2 µH Shielded Drum Core, Wirewound Inductor 2.33 A 66mOhm Max Nonstandard
Datasheet
VLF403210MT-2R2M Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series VLF-M
Package Tape & Reel
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 2.33 A
Current - Saturation (Isat) 1.59A
Shielding Shielded
DC Resistance (DCR) 66mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.157" L x 0.126" W (4.00mm x 3.20mm)
Height - Seated (Max) 0.039" (1.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 445-17127-6,445-17127-ND,445-17127-2,VLF403210MT-2R2M-ND,445-17127-1
Standard Package 1,000
Win Source Part Number 961224-VLF403210MT-2R2M
Ultra Librarian 3D Model Ultra Librarian VLF403210MT-2R2M CAD Model

Description

The VLF403210MT-2R2M is a fixed inductor from TDK Corporation.

  • Inductance: 2.2 µH
  • Current Rating: 2.33 A
  • Shielded: Yes
  • Tolerance: ±20%
  • Core Type: Drum core, wirewound
  • Mounting: SMD (SMT)
  • Temperature Range: -40°C to 105°C
  • Core Material: Ferrite
  • Dimension: 0.157" L x 0.126" W (4.00mm x 3.20mm)
