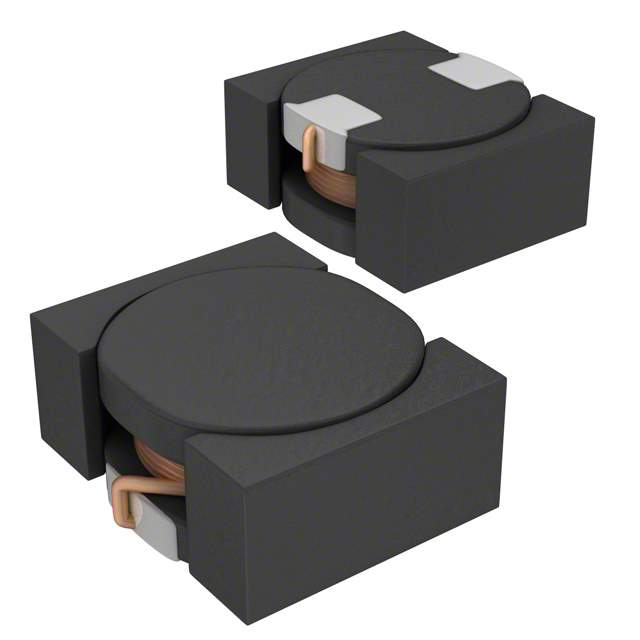

VLF302512MT-220M Real Image
Same model may have multiple batches, images only for reference.

VLF302512MT-220M

Part No VLF302512MT-220M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description SMD Inductors
Datasheet
VLF302512MT-220M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Series VLF-MT
Packaging Reel - TR
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating 640mA
Current - Saturation 470mA
Shielding Shielded
DC Resistance (DCR) 700 mOhm Max
Operating Temperature Range -40°C ~ 105°C
Test Frequency 1MHz
Mounting SMD
Package Nonstandard
Size 0.118" L x 0.098" W (3.00mm x 2.50mm)
Height - Seated (Maximum) 0.047" (1.20mm)
Win Source Part Number 1279371-VLF302512MT-220M
Manufacturer Homepage www.tdk.com
Popularity Medium
Supply and Demand Status Limited
Family Name VLF-M
Introduction Date May 20, 2002
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian VLF302512MT-220M CAD Model

Description

The TDK Corporation VLF-MT series wirewound inductor is a shielded component with an inductance of 22μH and a current rating of 640mA.

  • Material: ferrite
  • Tolerance: ±20%
  • Operating temperature range: -40°C to 105°C
  • DC resistance: 700 mOhm Max
  • Package: non-standard
  • Mounting: SMD
  • Size: 0.118" L x 0.098" W (3.00mm x 2.50mm)
  • Series: VLF-MT series
  • Family: VLF-M family of components
  • Categories: Inductors, Coils, Chokes
  • Halogen-free regulations: compliant
  • Estimated EOL date: obsolete
  • Supply and demand status: limited
