Same model may have multiple batches, images only for reference.

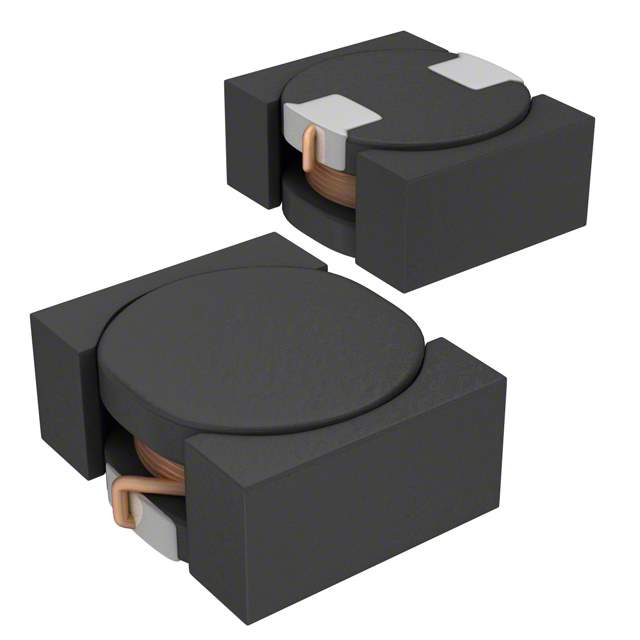

VLF302512MT-1R0N Real Image
Same model may have multiple batches, images only for reference.

VLF302512MT-1R0N

Part No VLF302512MT-1R0N
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description SMD Inductors | FIXED IND 1UH 2.77A 37 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel
Status Obsolete
Type Wirewound
Material - Core Ferrite
Inductance 1μH
Tolerance ±30%
Current Rating (Amps) 2.77A
Current - Saturation 2.12A
Shielding Shielded
DC Resistance (DCR) 37mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1MHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.118" L x 0.098" W (3.00mm x 2.50mm)
Height - Seated (Maximum) 0.047" (1.20mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1279370-VLF302512MT-1R0N
Manufacturer Homepage www.tdk.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VLF302512MT-1R0N CAD Model

Description

The TDK Corporation VLF302512MT-1R0N wirewound inductor is an ideal choice for a wide range of applications.

  • Shielding: With a shielding feature and a saturation current of 2.12A.
  • Inductance: 1μH.
  • Tolerance: ±30%.
  • Material: Made of ferrite.
  • Mounting: SMD technology.
  • DC Resistance: 37mOhm Max.
  • Dimension: 0.118" L x 0.098" W (3.00mm x 2.50mm).
  • Operating Temperature: -40°C ~ 105°C.
  • Current Rating: 2.77A.
  • Inductance Frequency Test: 1MHz.
