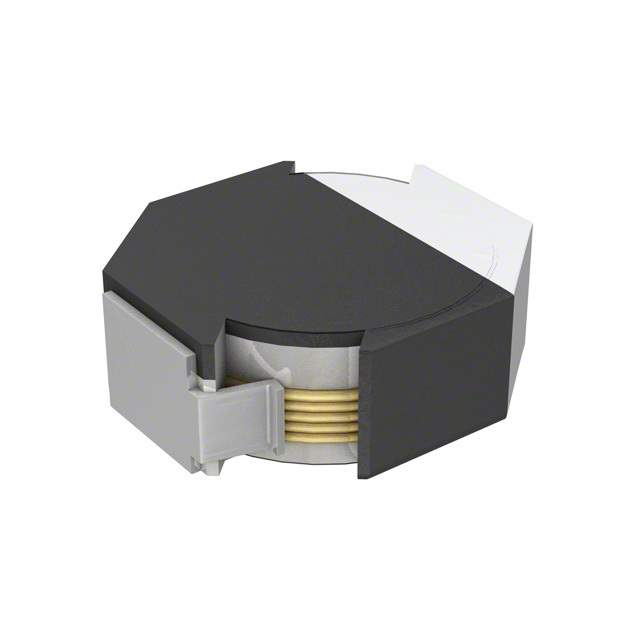

The VLF3010AT-4R7M is a shielded power inductor manufactured by TDK Corporation. It's designed for use in power supply circuits and DC-DC converters. This inductor is characterized by its low profile, small size, and excellent electrical characteristics, making it suitable for compact electronic devices.

Applications:


• DC-DC converters

• Power supply regulation

• Noise filtering in power lines

• Portable electronic devices

• Smartphones, tablets, and laptops

Features:


• Shielded construction for low EMI (Electromagnetic Interference)

• Low DC resistance for high efficiency

• Small size and low profile

• Excellent current handling capability

• Operating Temperature: -40°C to +105°C

Benefits:


• Reduces electromagnetic interference, preventing noise from affecting other components

• Improves the efficiency of power conversion circuits

• Enables compact and lightweight designs

• Provides stable and reliable performance in various operating conditions

Technical Specifications:


• Inductance: 4.7 µH

• Tolerance: ±20%

• DC Resistance (DCR): Typically around 0.1 Ohms (Consult datasheet for precise value)

• Saturation Current (Isat): Around 1.1 A (Consult datasheet for precise value)

• Rated Current (Irms): Around 0.9 A (Consult datasheet for precise value)

• Shielded: Yes

• Footprint/Case Size: 3.0mm x 3.0mm x 1.0mm

The VLF3010AT-4R7M power inductor is a reliable and efficient component for power management in various electronic devices. Its shielded construction and low DC resistance make it a popular choice for designers seeking to minimize EMI and maximize efficiency. Always refer to the manufacturer's datasheet for detailed specifications and application guidelines before use.
