Same model may have multiple batches, images only for reference.

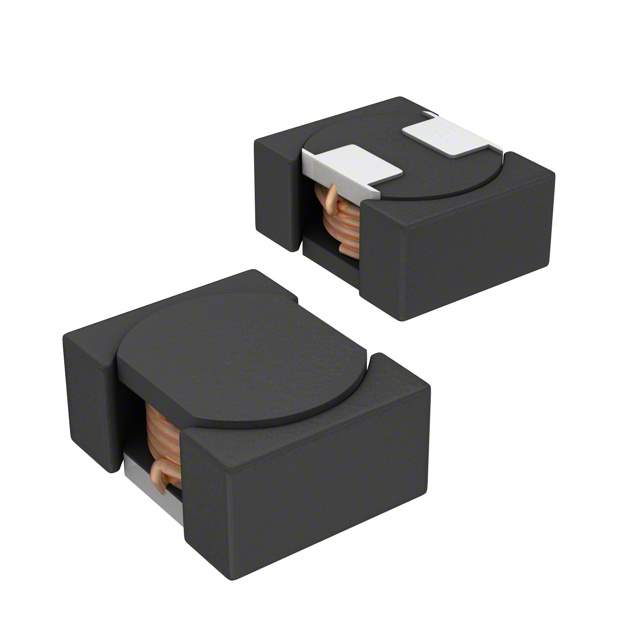

VLF252012MT-4R7M Real Image
Same model may have multiple batches, images only for reference.

VLF252012MT-4R7M

Part No VLF252012MT-4R7M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 4.7UH 1.09A 220 MOHM / Inductors for Power Circuits Wound Ferrite
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK Corporation
Packaging Reel
Part Status Obsolete (End Of Life)
Type Wirewound
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±20%
Current Rating (Amps) 1.09A
Current - Saturation 620mA
Shielding Shielded
DC Resistance (DCR) 220mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1MHz
Mounting Style SMD
Manufacturer Package 1008 (2520 Metric)
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Maximum) 0.047" (1.20mm)
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806833-VLF252012MT-4R7M
Ultra Librarian 3D Model Ultra Librarian VLF252012MT-4R7M CAD Model

Description

{"ProductId":745414,"FormattedDescription":"

The TDK Corporation VLF252012MT-4R7M is a shielded wirewound inductor with an inductance of 4.7µH and a tolerance of ±20%.

  • Inductance: 4.7µH
  • Tolerance: ±20%
  • Maximum Current Saturation: 620mA
  • DC Resistance: 220mOhm max
  • Temperature Range: -40°C to 105°C
  • Packaging: Reel (2,000 units per pack)
  • Dimensions: 0.098" L x 0.079" W
  • Height: 0.047"
  • Status: Obsolete (end of life)
  • Popularity: Medium
"}
