Same model may have multiple batches, images only for reference.

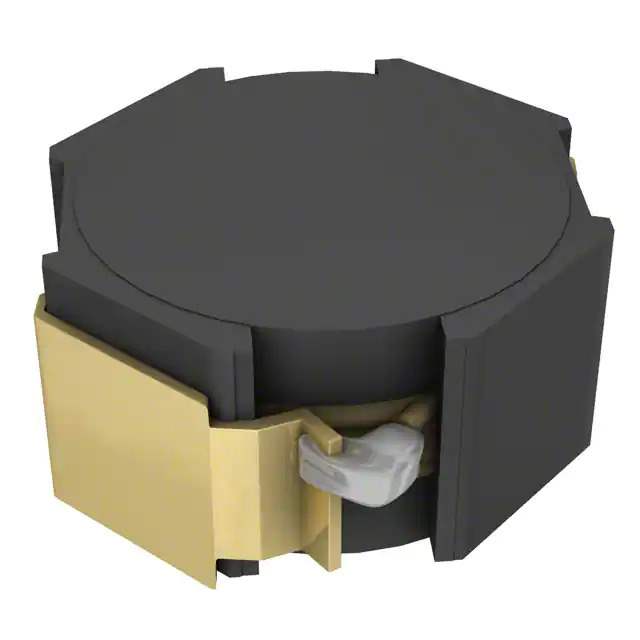

VLF10045T-1R5N9R0 Real Image
Same model may have multiple batches, images only for reference.

VLF10045T-1R5N9R0

Part No VLF10045T-1R5N9R0
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 1.5UH 9A 6.8 MOHM SMD / 1.5 μH Shielded Drum Core, Wirewound Inductor 9 A 6.8mOhm Max Nonstandard
Datasheet
VLF10045T-1R5N9R0 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr TDK Corporation
Series VLF
Package Tape & Reel
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1.5 µH
Tolerance ±30%
Current Rating (Amps) 9 A
Current - Saturation (Isat) 11.1A
Shielding Shielded
DC Resistance (DCR) 6.8mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.394" L x 0.382" W (10.00mm x 9.70mm)
Height - Seated (Max) 0.177" (4.50mm)
Standard Package 500 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 938690-VLF10045T-1R5N9R0
Ultra Librarian 3D Model Ultra Librarian VLF10045T-1R5N9R0 CAD Model

Description

The VLF series from TDK Corporation is a range of fixed inductors with a drum core, wirewound construction.

  • Series: VLF
  • Construction: Wirewound
  • Core Type: Drum Core
  • Shielded: Yes
  • Size: 0.394" L x 0.382" W (10.00mm x 9.70mm)
  • Height: 0.177" (4.50mm) Max
  • Inductance: 1.5μH
  • Tolerance: ±30%
  • DC Resistance: 6.8mOhm
  • Current Rating: 9A
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C to 105°C
  • REACH: Unaffected
  • Package: Nonstandard
  • Product Status: Obsolete
