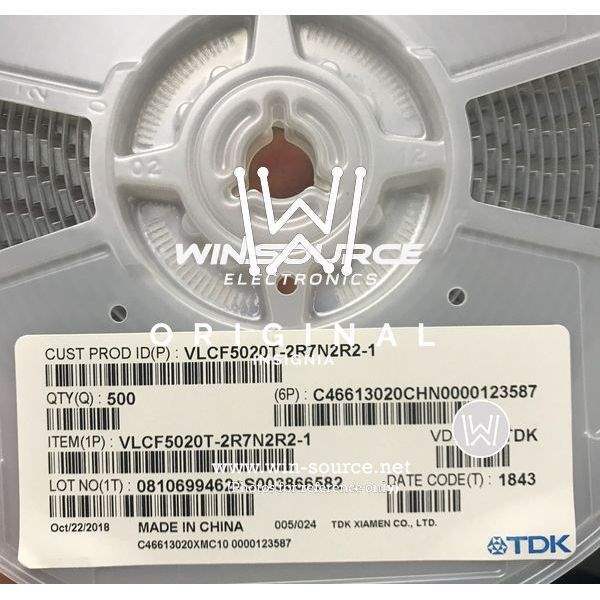

VLCF5020T-2R7N2R2-1 Real Image VLCF5020T-2R7N2R2-1 real image VLCF5020T-2R7N2R2-1 label picture
Same model may have multiple batches, images only for reference.
VLCF5020T-2R7N2R2-1 Real Image VLCF5020T-2R7N2R2-1 real image VLCF5020T-2R7N2R2-1 label picture
VLCF5020T-2R7N2R2-1 Real Image VLCF5020T-2R7N2R2-1 real image VLCF5020T-2R7N2R2-1 label picture
Same model may have multiple batches, images only for reference.

VLCF5020T-2R7N2R2-1

Part No VLCF5020T-2R7N2R2-1
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 2.7UH 2.28A 83 MOHM
Datasheet
VLCF5020T-2R7N2R2-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 2.7μH
Tolerance ±30%
Current Rating 2.28A
Current - Saturation 2.28A
DC Resistance (DCR) 83 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.079" (2.00mm)
Win Source Part Number 129340-VLCF5020T-2R7N2R2-1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VLCF5020T-2R7N2R2-1 CAD Model

Description

The VLCF5020T-2R7N2R2-1 is a wirewound inductor manufactured by TDK Corporation.

  • Current Rating: 2.28A
  • Inductance: 2.7μH
  • RoHS Compliant: Yes
  • Temperature Range: -40°C to 105°C
