Same model may have multiple batches, images only for reference.

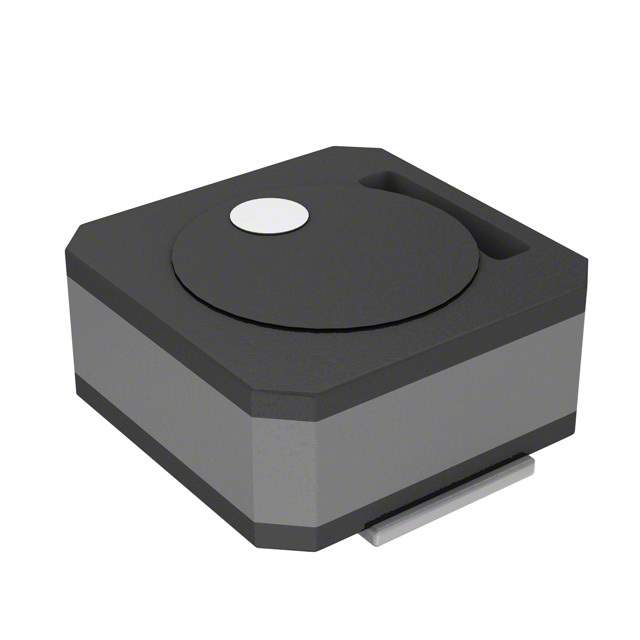

VLCF4020T-101MR26 Real Image
Same model may have multiple batches, images only for reference.

VLCF4020T-101MR26

Part No VLCF4020T-101MR26
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 100UH 260MA 1.4 OHM / Inductor Power Shielded Wirewound 100uH 20% 100KHz Ferrite 0.45A 1.4Ohm DCR 1515 T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 100μH
Tolerance ±20%
Current Rating 260mA
Current - Saturation 260mA
DC Resistance (DCR) 1.4 Ohm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.079" (2.00mm)
Win Source Part Number 043602-VLCF4020T-101MR26
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name VLCF
Introduction Date May 20, 2002
ECCN EAR99
Country of Origin United Kingdom
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian VLCF4020T-101MR26 CAD Model

Description

Its supply and demand status is balanced.

  • Component Type: Wirewound type inductor
  • Current Rating: 260mA
  • Inductance: 100μH
  • Height: 0.079" (2.00mm) when seated
  • Mounting: SMD (SMT) technology
  • Compliance: Halogen-free standards
  • Estimated EOL Date: 2027
  • Usage: Common-used part
