Same model may have multiple batches, images only for reference.

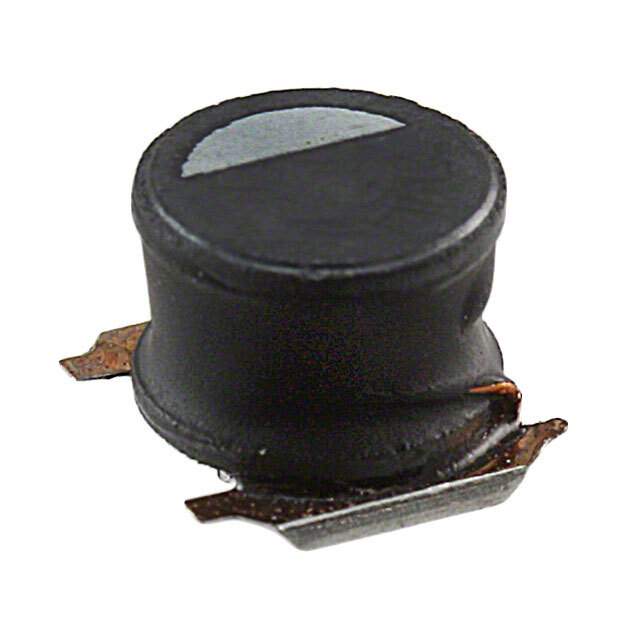

VLC6045T-4R7M Real Image
Same model may have multiple batches, images only for reference.

VLC6045T-4R7M

Part No VLC6045T-4R7M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description Inductor Power Shielded Wirewound 4.7uH 20% 100KHz 3.8A 0.027Ohm DCR / FIXED IND 4.7UH 3.8A 27 MOHM SMD
Datasheet
VLC6045T-4R7M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Type Wirewound
Inductance 4.7μH
Tolerance ±20%
Current Rating 3.8A
Current - Saturation 3.8A
DC Resistance (DCR) 27 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.177" (4.50mm)
Win Source Part Number 106122-VLC6045T-4R7M
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name VLC
Introduction Date May 20, 2002
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian VLC6045T-4R7M CAD Model

Description

The VLC6045T-4R7M is a wirewound inductor from TDK Corporation.

  • Applications: High frequency applications such as power supplies, DC-DC converters, and noise filters
  • Inductance: 4.7μH
  • Current Rating: 3.8A
  • Tolerance: ±20%
  • Package: SMD (SMT)
  • Compliance: RoHS compliant
  • Status: Obsolete (EOL)
