Same model may have multiple batches, images only for reference.

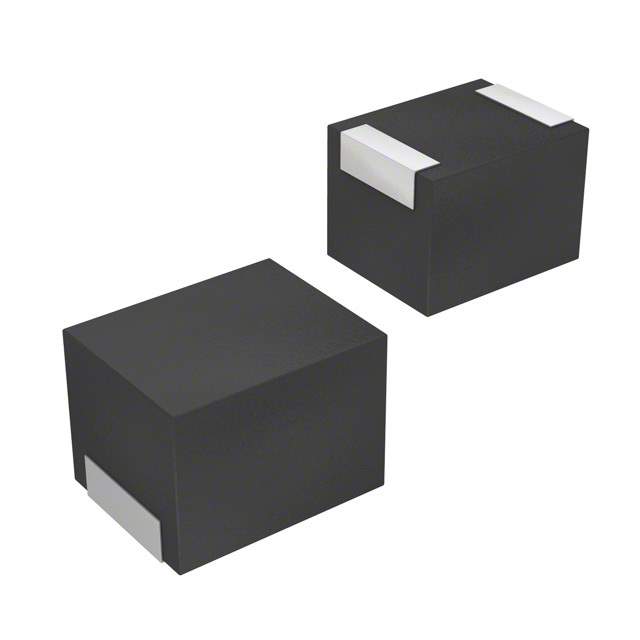

NL322522T-220J Real Image
Same model may have multiple batches, images only for reference.

NL322522T-220J

Part No NL322522T-220J
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 22UH 110MA 3.7 OHM SMD
Datasheet
NL322522T-220J Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Inductance 22μH
Tolerance ±5%
Current Rating 110mA
DC Resistance (DCR) 3.7 Ohm Max
Q @ Freq 30 @ 2.52MHz
Frequency - Self Resonant 20MHz
Temperature Range - Operating -40°C to 85°C
Frequency - Test 2.52MHz
Mounting SMD (SMT)
Case / Package 1210
Height - Seated (Max) 0.094" (2.40mm)
Win Source Part Number 060445-NL322522T-220J
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian NL322522T-220J CAD Model

Description

The NL322522T-220J is an inductor coil manufactured by TDK Corporation.

  • Inductance: It has a high inductance of 22μH
  • Current Rating: and a current rating of 110mA.
  • Application: This inductor coil is designed for use in various applications such as power supplies, DC-DC converters, and noise filters.
  • Supply and demand status: Its supply and demand status is currently in balance.
