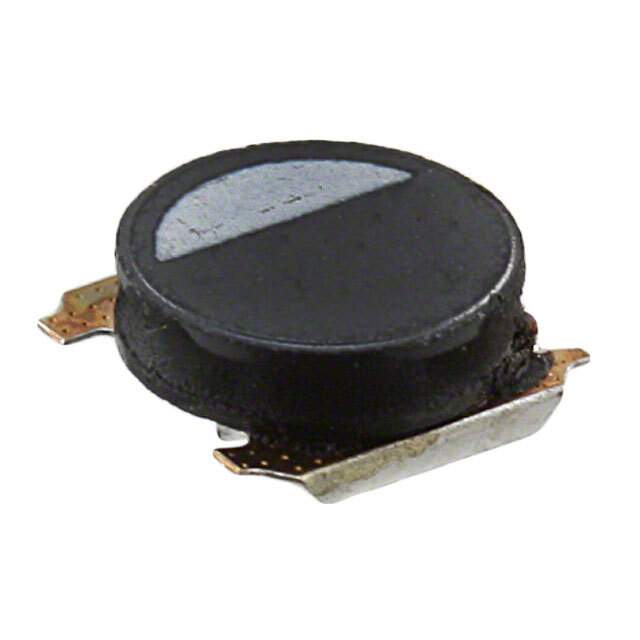

VLC5020T-3R3N Real Image
Same model may have multiple batches, images only for reference.

VLC5020T-3R3N

Part No VLC5020T-3R3N
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description SMD Inductors(Coils) For Power Line(Wound, Magnetic Shielded) | FIXED IND 3.3UH 2.4A 71 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel
Status Obsolete
Type Wirewound
Inductance 3.3μH
Tolerance ±30%
Current Rating (Amps) 2.4A
Current - Saturation 2.4A
Shielding Shielded
DC Resistance (DCR) 71mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Maximum) 0.079" (2.00mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1279348-VLC5020T-3R3N
Manufacturer Homepage www.tdk.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VLC5020T-3R3N CAD Model

Description

The TDK Corporation VLC5020T-3R3N is a shielded wirewound SMD inductor with an inductance of 3.3μH and a tolerance of ±30%.

  • DC resistance (DCR): 71mOhm Max.
  • Current saturation: 2.4A.
  • Height: 0.079" (2.00mm).
  • Parts dimension: 0.197" L x 0.197" W (5.00mm x 5.00mm).
  • Status: It is obsolete and has a limited supply and demand status.
  • Manufacturer pack quantity: 1.
