Same model may have multiple batches, images only for reference.

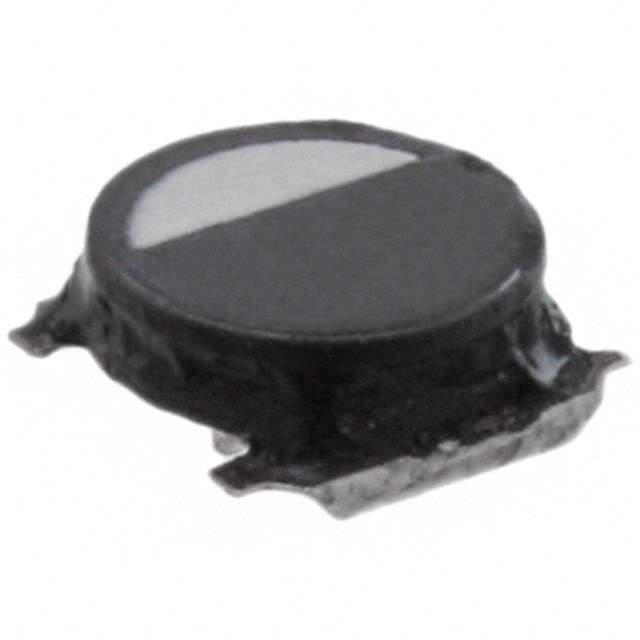

VLC5020T-2R2N Real Image
Same model may have multiple batches, images only for reference.

VLC5020T-2R2N

Part No VLC5020T-2R2N
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description SMD Inductors(Coils) For Power Line(Wound, Magnetic Shielded) | FIXED IND 2.2UH 3A 45 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel
Status Obsolete
Type Wirewound
Inductance 2.2μH
Tolerance ±30%
Current Rating (Amps) 3A
Current - Saturation 3A
Shielding Shielded
DC Resistance (DCR) 45mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Maximum) 0.079" (2.00mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1279347-VLC5020T-2R2N
Manufacturer Homepage www.tdk.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VLC5020T-2R2N CAD Model

Description

The VLC5020T-2R2N is an inductor manufactured by TDK Corporation.

  • Popularity: It is a medium popularity component with limited supply and demand status.
  • Type: The component is shielded.
  • Inductance: 2.2μH with a tolerance of ±30%.
  • Win Source Part Number: 1279347-VLC5020T-2R2N.
  • Function: The component is commonly used in electronic circuits for its ability to store energy in a magnetic field.
