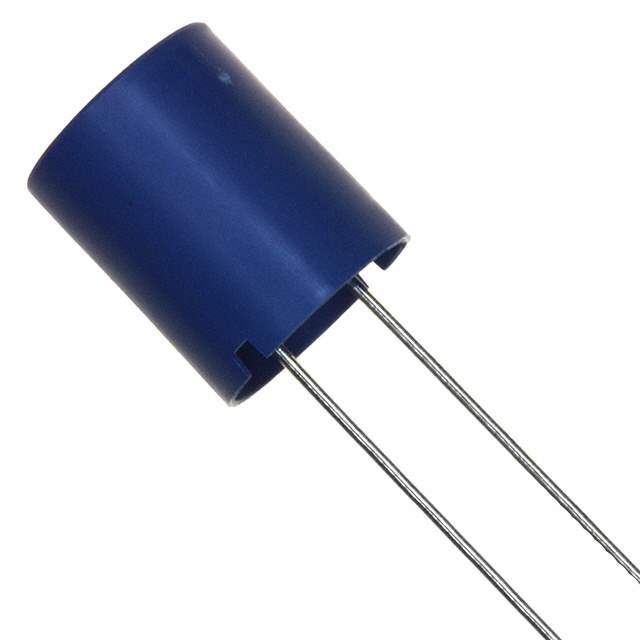

TSL1315RA-100K5R1-PF Real Image
Same model may have multiple batches, images only for reference.

TSL1315RA-100K5R1-PF

Part No TSL1315RA-100K5R1-PF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 10UH 5.1A 23 MOHM TH / Inductor Power Wirewound 10uH 10% 1KHz 90Q-Factor 5.1A 23mOhm DCR RDL Ammo
Datasheet
TSL1315RA-100K5R1-PF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Series TSL
Packaging Tape in Box
Part Status Obsolete(EOL)
Inductance 10μH
Tolerance ±10%
Current Rating 5.1A
Current - Saturation 12A
Shielding Unshielded
DC Resistance (DCR) 23 mOhm Max
Q @ Freq 90 @ 2.52MHz
Frequency - Self Resonant 19MHz
Operating Temperature Range -20°C ~ 85°C
Test Frequency 1kHz
Mounting Style Through Hole
Package Radial
Dimension 0.551" Dia (14.00mm)
Height - Seated (Maximum) 0.669" (17.00mm)
Win Source Part Number 798482-TSL1315RA-100K5R1-PF
Popularity Medium
Supply and Demand Status Balance
Family Name TSL1315
Introduction Date June 25, 1999
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian TSL1315RA-100K5R1-PF CAD Model

Description

The TDK Corporation 798482-TSL1315RA-100K5R1-PF electronic component is an inductor, coil, or choke that belongs to the TSL series.

  • Package: Radial
  • Mounting Style: Through Hole
  • Current Rating: 5.1A
  • Inductance: 10μH
  • Tolerance: ±10%
  • Frequency - Self Resonant: 19MHz
  • Supply and Demand Status: Balance
  • Alternative Parts: NLI123C100MUTBF, LHL13NB100K, 16RHBP-100M, LHFP13BB100M
