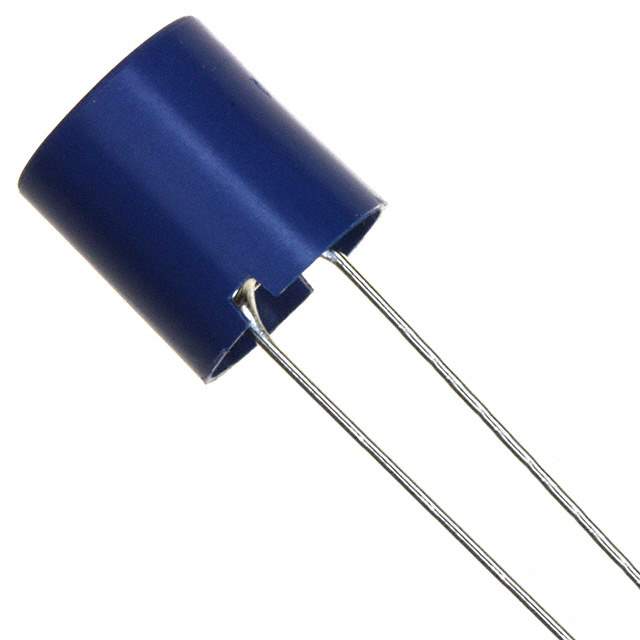

TSL1112RA-220K2R9-PF

Name: TSL1112RA-220K2R9-PF
Brand: TDK Corporation
SKU: 382386
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	TSL1112RA-220K2R9-PF
Manufacturer	TDK Corporation
Catalog	Fixed Inductors
Description	FIXED IND 22UH 2.9A 40 MOHM TH / Inductor Power Wirewound 22uH 10% 1KHz 20Q-Factor 2.9A 40mOhm DCR RDL Ammo
Datasheet	TSL1112RA-220K2R9-PF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	TDK Corporation
Packaging	AMMO PACKAGE
Status	Obsolete(EOL)
Inductance	22μH
Tolerance	±10%
Current Rating	2.9A
Current - Saturation	3.4A
DC Resistance (DCR)	40 mOhm Max
Q @ Freq	20 @ 2.52MHz
Frequency - Self Resonant	9.5MHz
Temperature Range - Operating	-20°C to 85°C
Frequency - Test	1kHz
Mounting	Through Hole
Height - Seated (Max)	0.492" (12.50mm)
Win Source Part Number	054485-TSL1112RA-220K2R9-PF
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Family Name	TSL
Introduction Date	June 25, 1999
ECCN	EAR99
Estimated EOL Date	Obsolete / End of life
Ultra Librarian 3D Model	Ultra Librarian TSL1112RA-220K2R9-PF CAD Model

Alternative Products

Description

The TDK Corporation TSL1112RA-220K2R9-PF is a through-hole inductor with an inductance of 22μH and a current rating of 2.9A.

Inductance: 22μH
Current Rating: 2.9A
Tolerance: ±10%
Q @ Freq: 20 @ 2.52MHz
Temperature Range: -20°C to 85°C
Applications: power supplies, DC-DC converters, and filters
Package: ammo package
