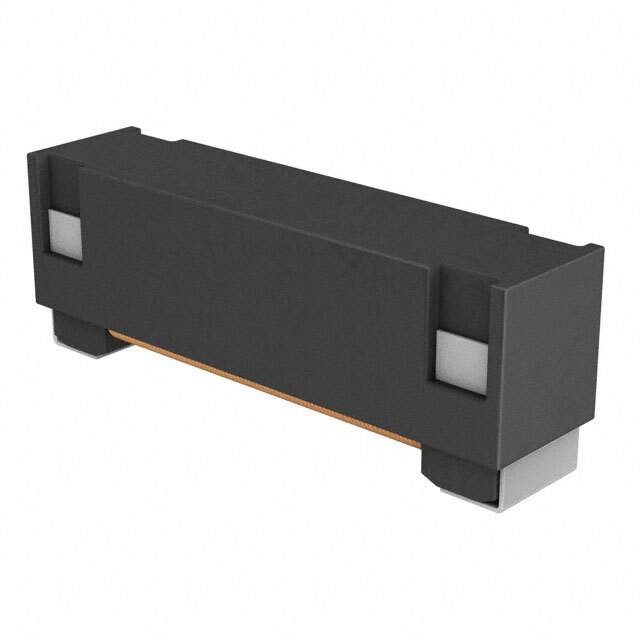

TPL802727-722H Real Image
Same model may have multiple batches, images only for reference.

TPL802727-722H

Part No TPL802727-722H
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 7.2MH 105 OHM SMD / 7.2 mH Unshielded Inductor 105Ohm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer TDK Corporation
Packaging Reel - TR
Product Status Obsolete
Inductance 7.2 mH
Tolerance ±3%
Shielding Unshielded
DC Resistance (DCR) 105Ohm Max
Q @ Freq 35 @ 125kHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 125 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.309" L x 0.106" W (7.85mm x 2.70mm)
Height - Seated (Max) 0.114" (2.90mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 445-175198-6,445-175198-1,445-175198-2,TPL802727-722H-ND
Standard Package 2,500
Win Source Part Number 1330285-TPL802727-722H
Ultra Librarian 3D Model Ultra Librarian TPL802727-722H CAD Model

Description

The TDK Corporation 1330285-TPL802727-722H is a fixed inductor that comes in reel - TR packaging with a standard package of 2,500.

  • Manufacturer: TDK Corporation
  • Product Type: Fixed Inductor
  • Packaging: Reel - TR
  • Standard Package: 2,500
  • Size/Dimension: 0.309" L x 0.106" W (7.85mm x 2.70mm)
  • Inductance: 7.2 mH
  • Tolerance: ±3%
  • Rating: AEC-Q200
  • DC Resistance (DCR): 105Ohm Max
  • ECCN: EAR99
