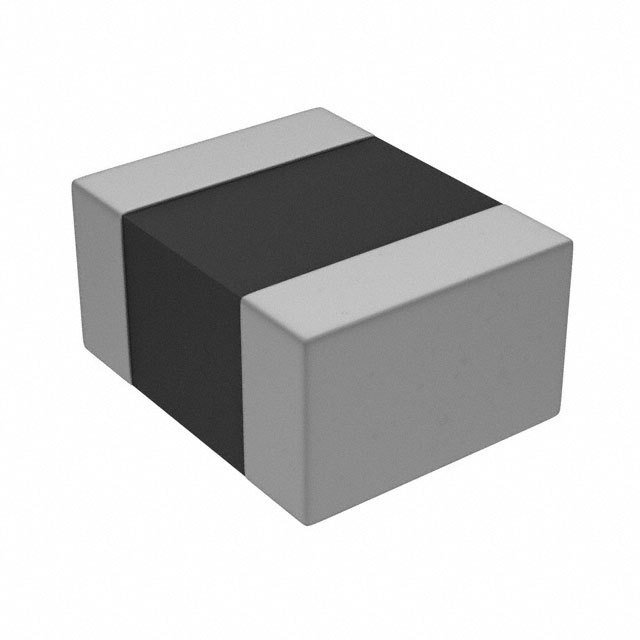

The TFM252010A-1R0M-T00 is a thin-film metal power inductor manufactured by TDK Corporation. It is designed for power management applications in portable devices and other space-constrained applications. The inductor's low profile and high efficiency make it a suitable choice for DC-DC converters and power supply circuits.

Applications

• Smartphones: Power management circuits within smartphones.
• Tablets: Used in voltage regulation for tablets.
• SSDs (Solid State Drives): DC-DC conversion within SSDs.
• Wearable Devices: Power circuits for smartwatches and fitness trackers.
• Portable Power Supplies: Power regulation in portable power supplies.

Features

• Compact Size: 2520 (2.5 x 2.0 mm) footprint.
• Low DC Resistance: Reduces power loss, improving efficiency.
• Inductance: 1.0 µH inductance (1R0M).
• Metal Alloy Core: Provides excellent saturation characteristics and inductance stability.
• Low Profile: 1.0 mm height for space-constrained applications.

Benefits

• Space Saving: The small size and low profile allow for use in compact devices.
• Increased Efficiency: Low DC resistance maximizes power conversion efficiency.
• Stable Performance: Metal alloy core ensures stable inductance over temperature and current variations.
• Reliable Operation: High saturation current ensures reliable operation under heavy loads.
• Extended Battery Life: Lower power losses contribute to longer battery life in portable devices.

Additional Details

The TFM252010A-1R0M-T00 complies with RoHS standards. The manufacturer's datasheet provides detailed electrical specifications, including saturation current, rated current, and operating temperature range. It is a crucial component in delivering stable and efficient power in modern electronic devices.
