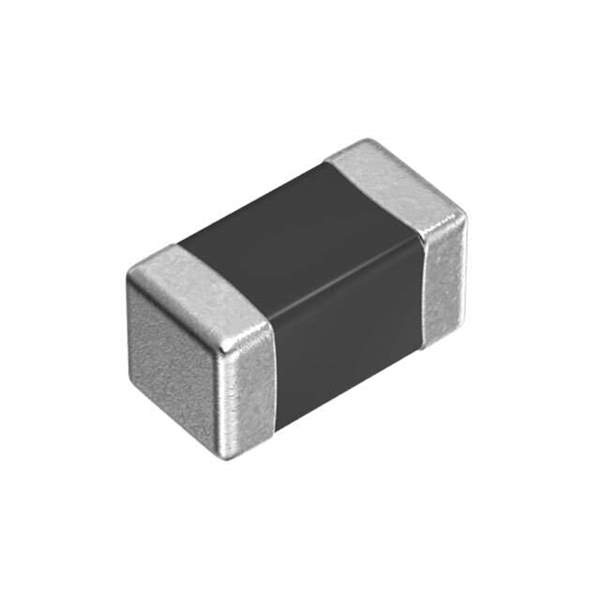

The TFM160808ALC-R47MTAA is a thin-film inductor manufactured by TDK Corporation. This inductor is designed for high-frequency applications, offering a compact size and excellent electrical characteristics. It excels in applications where miniaturization and performance are critical.

Applications

• RF Circuits: Used in impedance matching networks.
• Wireless Communication Devices: Found in filters and oscillators.
• Mobile Phones: Employed in antenna tuning and RF front-end circuits.
• Bluetooth Modules: Utilized in impedance matching.
• GPS Devices: Integrated into filter circuits.

Features

• High Self-Resonant Frequency (SRF): Allows for operation at high frequencies.
• Small Size: Dimensions are 1.6mm x 0.8mm x 0.8mm.
• High Q-Factor: Provides low losses and efficient performance.
• Tight Tolerance: Ensures consistent performance across different units.
• Thin-Film Construction: Enables precise control of electrical parameters.
• Operating Temperature Range: Suitable for a wide range of operating conditions.

Benefits

• Improved RF Performance: High SRF and Q-factor enhance signal integrity and reduce losses.
• Space Saving: Compact size allows for use in densely populated circuit boards.
• Stable Performance: Maintains consistent performance over a range of frequencies and temperatures.
• Reliable Performance: Designed for long-term reliability in demanding RF applications.

Additional Details

The TFM160808ALC-R47MTAA features a ceramic core material and thin-film winding technology. This combination provides excellent electrical characteristics and stable performance. The small footprint is ideal for miniaturized electronics where board space is at a premium. The specified inductance is 0.47µH with a tight tolerance that ensures consistent performance across different units. The component is designed to handle significant current levels without significant performance degradation. Its construction minimizes parasitic capacitance and inductance, enabling high-frequency operation. This inductor meets industry standards for environmental compliance.
