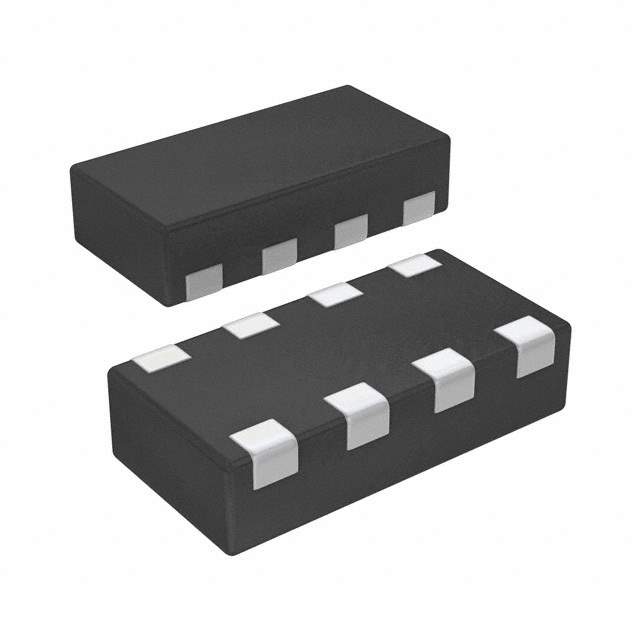

TCM1608G-900-4P-T200 Real Image
Same model may have multiple batches, images only for reference.

TCM1608G-900-4P-T200

Part No TCM1608G-900-4P-T200
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 100MA 4LN 90 OHM SMD
Datasheet
TCM1608G-900-4P-T200 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 4
Impedance @ Frequency 90 Ohm @ 100MHz
Current Rating (Max) 100mA
DC Resistance (DCR) (Max) 1.5 Ohm
Voltage Rating - DC 5V
Temperature Range - Operating -25°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.020" (0.50mm)
Dimension 0603 (1608 Metric), 8 Lead
Win Source Part Number 054471-TCM1608G-900-4P-T200
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TCM1608G-900-4P-T200 CAD Model

Description

The TDK Corporation Signal Line Filter is a device that has a voltage rating of 5V and a maximum current rating of 100mA.

  • Voltage Rating: 5V
  • Maximum Current Rating: 100mA
  • Height: 0.020" (0.50mm)
  • Lines: Four
  • Impedance: 90 Ohm @ 100MHz
  • Maximum DC Resistance (DCR): 1.5 Ohm
  • Application: Filters
  • Popularity: Medium
  • Supply and Demand: Balance
