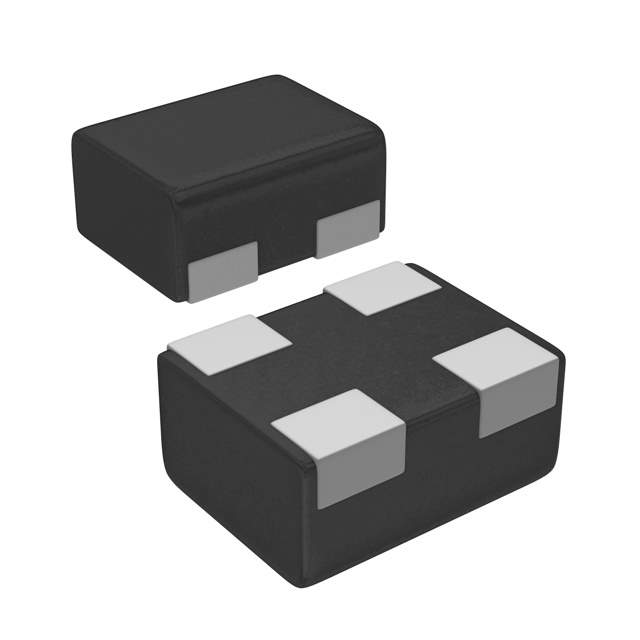

TCM0806G-900-2P Real Image
Same model may have multiple batches, images only for reference.

TCM0806G-900-2P

Part No TCM0806G-900-2P
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 100MA 2LN 90 OHM SMD
Datasheet
TCM0806G-900-2P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 90 Ohm @ 100MHz
Current Rating (Max) 100mA
DC Resistance (DCR) (Max) 2.7 Ohm
Voltage Rating - DC 10V
Temperature Range - Operating -25°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.018" (0.45mm)
Dimension 0302 (0806 Metric), 4 Lead
Win Source Part Number 360269-TCM0806G-900-2P
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TCM0806G-900-2P CAD Model

Description

The TDK Corporation TCM0806G-900-2P is a signal line filter component that is designed for various electronic applications. It is manufactured by TDK Corporation and has a high popularity rating. The supply and demand status is balanced.

  • Manufacturer: TDK Corporation
  • Function: signal line filter component
  • Impedance: 90 Ohm @ 100MHz
  • Voltage Rating: 10V
  • Package: reel
  • Dimension: 0302 (0806 Metric) and 4 lead
