Same model may have multiple batches, images only for reference.

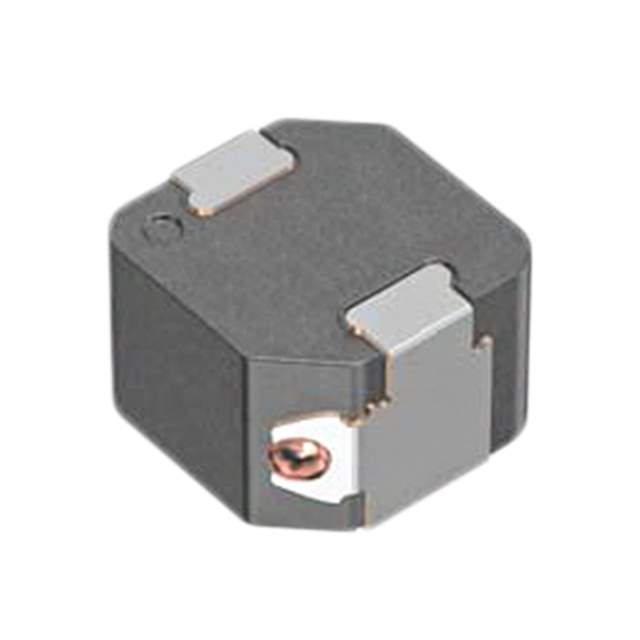

SPM6550T-R68M Real Image
Same model may have multiple batches, images only for reference.

SPM6550T-R68M

Part No SPM6550T-R68M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series SPM
Type Drum Core, Wirewound
Material - Core Metal
Inductance 680 nH
Tolerance ±20%
Current Rating (Amps) 18.1 A
Current - Saturation (Isat) 16.6A
Shielding Shielded
DC Resistance (DCR) 3.6mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case 2-SMD, J-Lead
Dimension 0.280" L x 0.256" W (7.10mm x 6.50mm)
Height - Seated (Max) 0.197" (5.00mm)
Other Names 445-174745-2,445-174745-1,445-174745-6
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1272641-SPM6550T-R68M
Ultra Librarian 3D Model Ultra Librarian SPM6550T-R68M CAD Model

Description

The TDK Corporation SPM6550T-R68M is a fixed inductor that is designed for use in electronic circuits.

  • Inductance: 680 nH
  • Current Rating (Max): 18.1 A
  • Feature: Shielded
  • Tolerance: ±20%
  • Mounting: Surface mount technology
  • Package: 2-SMD, J-Lead
  • DC Resistance (Max): 3.6mOhm
  • Height: 0.197 inches
  • Material: Metal
  • Operating Temperature Range: -40°C to 125°C
