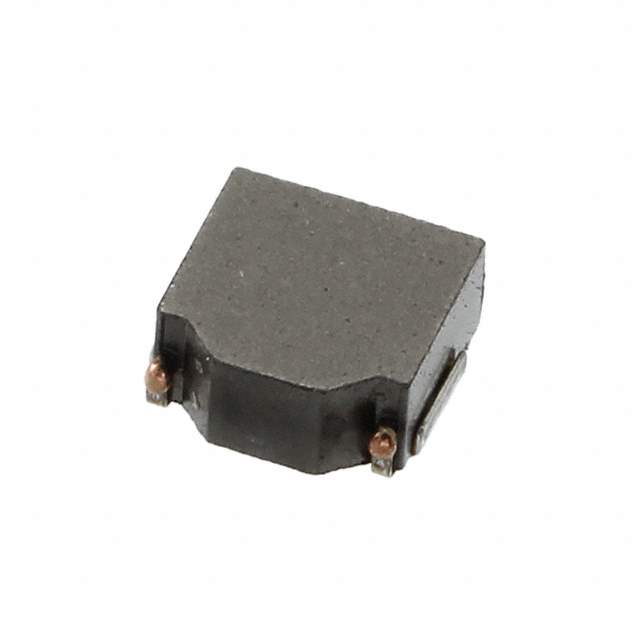

SPM4020T-1R5M Real Image
Same model may have multiple batches, images only for reference.

SPM4020T-1R5M

Part No SPM4020T-1R5M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 1.5UH 4.1A 46.8MOHM SM / 1.5 µH Shielded Drum Core, Wirewound Inductor 4.1 A 46.8mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer TDK Corporation
Packaging Reel
Product Status Last Time Buy
Type Drum Core, Wirewound
Material - Core Metal
Inductance 1.5 µH
Tolerance ±20%
Current Rating (Amps) 4.1 A
Current - Saturation (Isat) 4.3A
Shielding Shielded
DC Resistance (DCR) 46.8mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.173" L x 0.161" W (4.40mm x 4.10mm)
Height - Seated (Max) 0.079" (2.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 445-172371-6,445-172371-1,445-172371-2
Standard Package 500
Win Source Part Number 1327875-SPM4020T-1R5M
Ultra Librarian 3D Model Ultra Librarian SPM4020T-1R5M CAD Model

Description

The TDK Corporation SPM4020T-1R5M is a shielded fixed inductor with a drum core and wirewound design.

  • Shielding: Shielded
  • Core Type: Drum core, wirewound
  • Size: 0.173" L x 0.161" W (4.40mm x 4.10mm)
  • Height: 0.079" (2.00mm)
  • Inductance: 1.5 µH
  • Tolerance: ±20%
  • Core Material: Metal
  • DC Resistance (DCR): 46.8mOhm Max
  • Operating Temperature: -40°C to 125°C
  • Mounting: Surface mounted
  • Current Rating: 4.1 A
  • Product Type: Non-standard
  • Packaging: Reel of 500 pieces
  • ROHS: ROHS3 compliant
  • REACH: Unaffected by REACH
