Same model may have multiple batches, images only for reference.

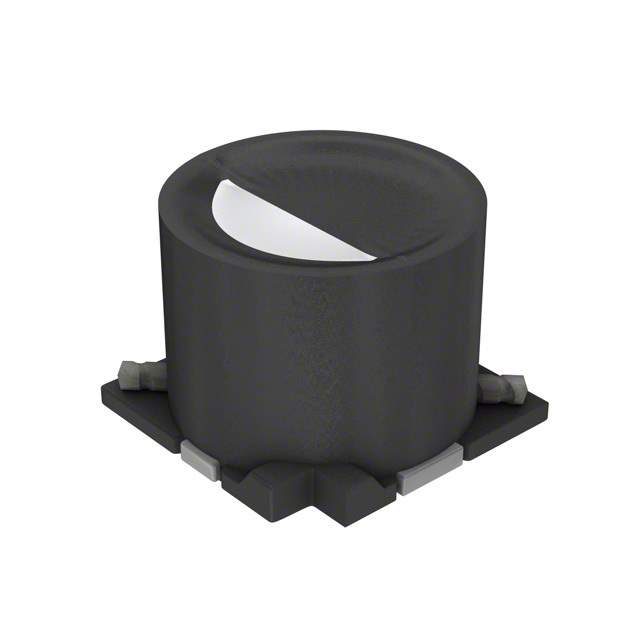

SLF10145T-220M1R9-PF Real Image
Same model may have multiple batches, images only for reference.

SLF10145T-220M1R9-PF

Part No SLF10145T-220M1R9-PF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description Inductor Power Shielded Wirewound 22uH 20% 1KHz Ferrite 1.9A 0.0709Ohm DCR T/R / FIXED IND 22UH 1.9A 70.9 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating 1.9A
Current - Saturation 2.1A
DC Resistance (DCR) 70.9 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 1kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.189" (4.80mm)
Win Source Part Number 028833-SLF10145T-220M1R9-PF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name SLF
Introduction Date August 03, 1999
ECCN EAR99
Country of Origin China, Philippines
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian SLF10145T-220M1R9-PF CAD Model

Description

The TDK Corporation SLF10145T-220M1R9-PF is a wirewound inductor with a current rating of 1.9A and an inductance of 22μH.

  • Height: 0.189" (4.80mm)
  • Mounting: SMD (SMT)
  • Tolerance: ±20%
  • Material: ferrite
  • Current Saturation: 2.1A
  • DC Resistance (DCR): 70.9 mOhm Max
  • Operating Temperature Range: -40°C to 105°C
  • Part Usage: common-used
  • Popularity: high
  • Supply and Demand Status: sufficient
  • Reliable choice for: inductors, coils, and chokes applications
