Same model may have multiple batches, images only for reference.

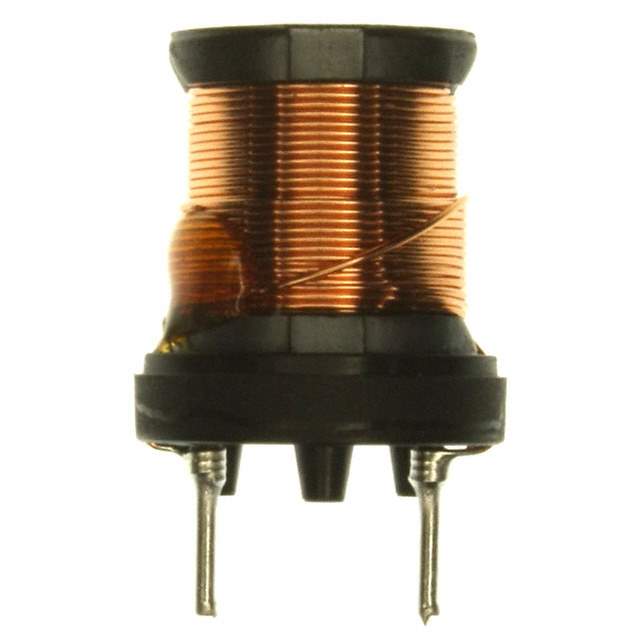

SL1720-222KR60-PF Real Image
Same model may have multiple batches, images only for reference.

SL1720-222KR60-PF

Part No SL1720-222KR60-PF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Datasheet
SL1720-222KR60-PF Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series SL
Package Tray
Product Status Obsolete
Type Wirewound
Inductance 2.2 mH
Tolerance ±10%
Current Rating (Amps) 600 mA
Current - Saturation (Isat) 810mA
Shielding Unshielded
DC Resistance (DCR) 1.22Ohm Max
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder (Open)
Dimension 0.665" Dia (16.90mm)
Height - Seated (Max) 0.827" (21.00mm)
Other Names -SL1720-222KR60,445-3810,SL1720222KR60PF
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1272699-SL1720-222KR60-PF
Ultra Librarian 3D Model Ultra Librarian SL1720-222KR60-PF CAD Model

Description

The SL series wirewound inductor is a fixed inductor designed for use in various electronic circuits.

  • Series: SL series
  • Type: Fixed inductor
  • Inductance: 2.2 mH
  • Tolerance: ±10%
  • DC Resistance (DCR): 1.22 Ohm
  • Current Rating: 600 mA
  • Shielded: Unshielded
  • Package: Radial, vertical cylinder (open)
  • Height: 0.827" (21.00mm)
  • Diameter: 0.665" (16.90mm)
  • Temperature Range: -40°C to 85°C
  • Manufacturer: TDK Corporation
  • Lifecycle Status: Obsolete
