Same model may have multiple batches, images only for reference.

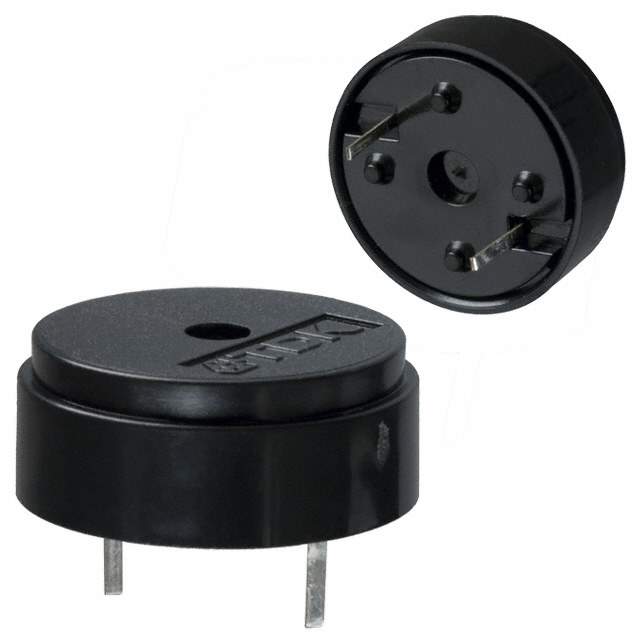

PS1740P02 Real Image
Same model may have multiple batches, images only for reference.

PS1740P02

Part No PS1740P02
Manufacturer TDK Corporation
Catalog Alarms, Buzzers, and Sirens
Description AUDIO PIEZO TRANSDUCER 30V TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK Corporation
Packaging Tape & Box (TB)
Part Status Obsolete (End Of Life)
Driver Circuitry Transducer, Externally Driven
Input Type Zero-Peak Signal
Voltage - Rated 3V
Voltage Range 30V (Maximum)
Frequency 4kHz
Technology Piezo
Operating Mode Single Tone
Sound Pressure Level (SPL) 75dB at 3V, 10cm
Port Location Top
Temperature Range - Operating -10°C ~ 70°C
Mounting Style Through Hole
Termination PC Pins
Dimension 0.669" Dia (17.00mm)
Height - Seated (Maximum) 7.80mm
Manufacturer Pack Quantity 240
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803814-PS1740P02
Ultra Librarian 3D Model Ultra Librarian PS1740P02 CAD Model

Description

The TDK Corporation PS1740P02 is a piezo transducer that can be used in a variety of electronic devices.

  • Voltage: 3V
  • Frequency: 4kHz
  • Mounting: Through Hole
  • Diameter: 0.669" Dia (17.00mm)
  • Sound Pressure Level (SPL): 75dB @ 3V, 10cm
  • Temperature Range: -10°C to 70°C
  • Popularity: Medium
  • Supply/Demand Status: Balanced
  • Packaging: Tape and Box
  • Status: Obsolete
