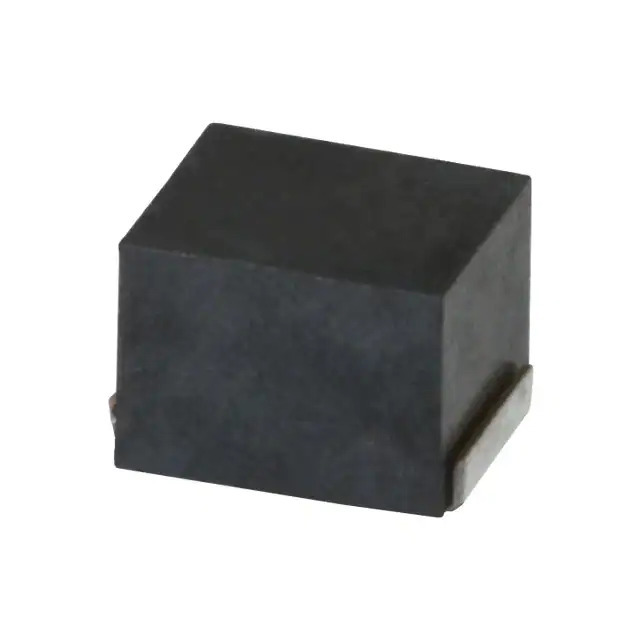

NLV32T-2R2J-EFD

Name: NLV32T-2R2J-EFD
Brand: TDK Corporation
SKU: 1370038
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	NLV32T-2R2J-EFD
Manufacturer	TDK Corporation
Catalog	Fixed Inductors
Description	FIXED IND 2.2UH 320MA 1 OHM SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	TDK Corporation
Series	NLV-EFD
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	2.2 µH
Tolerance	±5%
Current Rating (Amps)	320 mA
Current - Saturation (Isat)	-
Shielding	Unshielded
DC Resistance (DCR)	1Ohm Max
Q @ Freq	30 @ 7.96MHz
Frequency - Self Resonant	75MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 105°C
Inductance Frequency - Test	7.96 MHz
Mounting Type	Surface Mount
Package / Case	1210 (3225 Metric)
Supplier Device Package	1210
Size / Dimension	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max)	0.094" (2.40mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1370038-NLV32T-2R2J-EFD
Ultra Librarian 3D Model	Ultra Librarian NLV32T-2R2J-EFD CAD Model

Alternative Products

Description

The NLV32T-2R2J-EFD is a drum core, wirewound inductor manufactured by TDK Corporation.

Series: NLV-EFD
Package: 1210 (3225 Metric)
Operating Temperature: -40°C to 105°C
Tolerance: ±5%
Inductance: 2.2 μH
Current Rating: 320 mA
Mounting Type: Surface Mount
Shielding: Unshielded
DC Resistance (DCR): 1 Ohm max
Self-Resonant Frequency: 75 MHz
RoHS: Compliant
AEC-Q200: Yes
Size: 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height: 0.094" (2.40mm)
