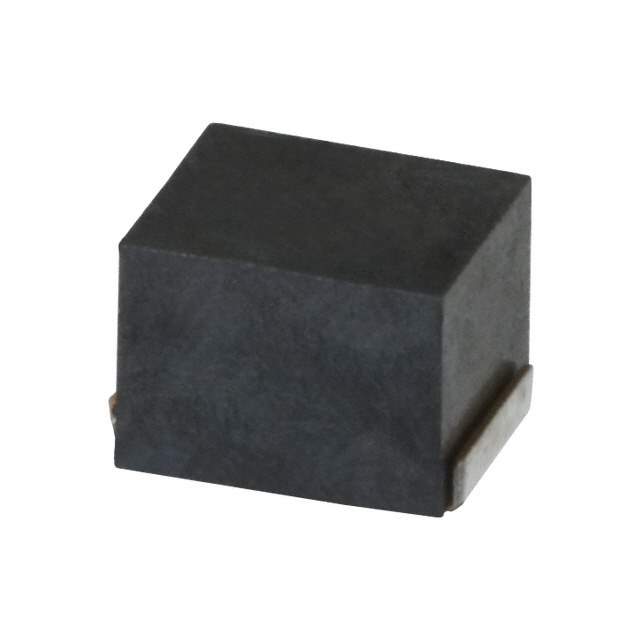

NLV32T-2R2J-EF

Name: NLV32T-2R2J-EF
Brand: TDK Corporation
SKU: 1108208
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	NLV32T-2R2J-EF
Manufacturer	TDK Corporation
Catalog	Fixed Inductors
Description	FIXED IND 2.2UH 320MA 1 OHM SMD / 2.2 µH Unshielded Drum Core, Wirewound Inductor 320 mA 1Ohm Max 1210 (3225 Metric)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	TDK Corporation
Series	NLV-EF
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	2.2 µH
Tolerance	±5%
Current Rating (Amps)	320 mA
Shielding	Unshielded
DC Resistance (DCR)	1Ohm Max
Q @ Freq	30 @ 7.96MHz
Frequency - Self Resonant	75MHz
Temperature Range - Operating	-40°C ~ 105°C
Inductance Frequency - Test	7.96 MHz
Mounting	SMD (SMT)
Package / Case	1210 (3225 Metric)
Supplier Device Package	1210
Dimension	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max)	0.094" (2.40mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	445-16580-6,NLV32T-2R2J-EF-ND,445-16580-2,445-16580-1
Standard Package	2,000
Win Source Part Number	1108208-NLV32T-2R2J-EF
Ultra Librarian 3D Model	Ultra Librarian NLV32T-2R2J-EF CAD Model

Alternative Products

Description

The NLV32T-2R2J-EF is a drum core, wirewound fixed inductor from TDK Corporation.

Inductance: 2.2 µH with a tolerance of ±5%
DC Resistance (DCR): 1 Ohm Max
Q @ Freq: 30 @ 7.96MHz
Frequency Self-Resonant: 75MHz
Package/Case: 1210 (3225 Metric)
Height: 0.094" (2.40mm)
Dimension: 0.126" L x 0.098" W (3.20mm x 2.50mm)
Suitable for: use in inductors, coils, chokes applications
Temperature Range: -40°C to 105°C
Package: Tape and Reel
Standard Package: 2,000
