Same model may have multiple batches, images only for reference.

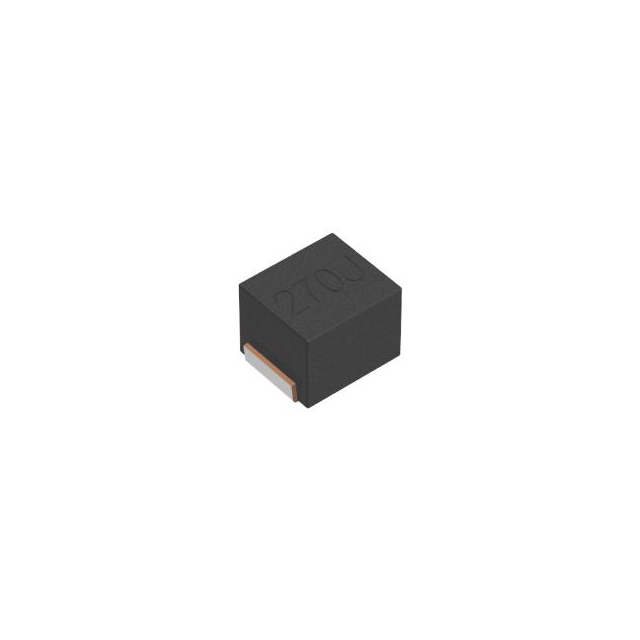

NLV25T-5R6J-PFD Real Image
Same model may have multiple batches, images only for reference.

NLV25T-5R6J-PFD

Part No NLV25T-5R6J-PFD
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 5.6UH 170MA 2.5OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors
Features 5.6 µH Unshielded Wirewound Inductor 170 mA 2.5Ohm Max 1008 (2520 Metric)
Manufacturer TDK Corporation
Series NLV-PFD
Package Reel - TR
Part Status Not For New Designs
Operating Temperature Range -40°C ~ 105°C
Mounting Surface Mount
Package 1008 (2520 Metric)
Case / Package 1008 (2520 Metric)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Quantity per package 2000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 929265-NLV25T-5R6J-PFD
Ultra Librarian 3D Model Ultra Librarian NLV25T-5R6J-PFD CAD Model

Description

The TDK Corporation 929265-NLV25T-5R6J-PFD is an inductor component from the NLV-PFD series.

  • Type: Unshielded wirewound inductor
  • Value: 5.6μH
  • Maximum Current: 170mA
  • Maximum Resistance: 2.5 Ohm
  • Package: Reel-TR
  • Package Size: 1008 (2520 Metric)
  • Suitable Use: Various applications such as power supplies, DC-DC converters, and automotive electronics.
