Analog Devices Inc. LTC2630AISC6-LZ12: 12-Bit DAC with Integrated Reference

The LTC2630AISC6-LZ12 is a precision Digital-to-Analog Converter (DAC) product from Analog Devices Inc., renowned for its high-quality electronic components. This particular DAC is part of the LTC2630 series, which features a range of 12-bit, 10-bit, and 8-bit DACs, all designed to provide accurate and stable analog outputs from digital input signals. The LTC2630AISC6-LZ12 offers a 12-bit resolution, ensuring fine granularity and high precision for a wide array of applications requiring digital-to-analog conversion.

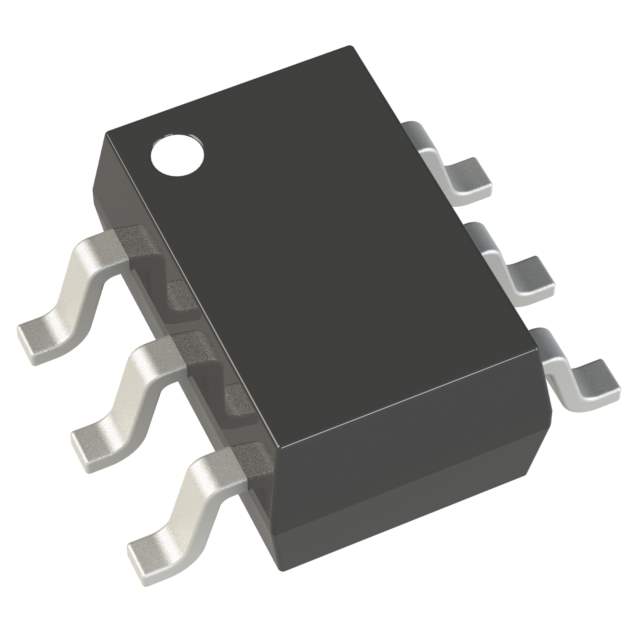

This DAC comes in a compact, 6-lead SC70 package, making it an excellent choice for space-constrained applications. Despite its small size, it boasts an integrated precision reference, which simplifies the design process by eliminating the need for external components. The reference is 10ppm/°C, providing a stable and accurate output over a wide temperature range.

The LTC2630AISC6-LZ12 operates from a 2.7V to 5.5V supply, providing flexibility in various supply environments. It features a Rail-to-Rail output buffer, which enables the output to swing from 0V to VCC, ensuring the full use of the supply range. This makes it particularly useful for battery-powered devices and other applications where power efficiency is critical.

Communication with the LTC2630AISC6-LZ12 is achieved through a SPI (Serial Peripheral Interface), which is widely used due to its simplicity and effectiveness in interfacing digital systems. The SPI interface allows for high-speed data transfer and easy integration into existing designs.

Typical applications for the LTC2630AISC6-LZ12 include process control, data acquisition systems, digital gain and offset adjustment, and computer-controlled calibration. Its precision, combined with the integrated reference and compact form factor, make it an ideal choice for designers looking for a reliable and space-efficient DAC solution.

Overall, the LTC2630AISC6-LZ12 from Analog Devices Inc. is a high-performance DAC that offers a balance of precision, power efficiency, and ease of use, making it suitable for a broad range of electronic applications.
