Same model may have multiple batches, images only for reference.

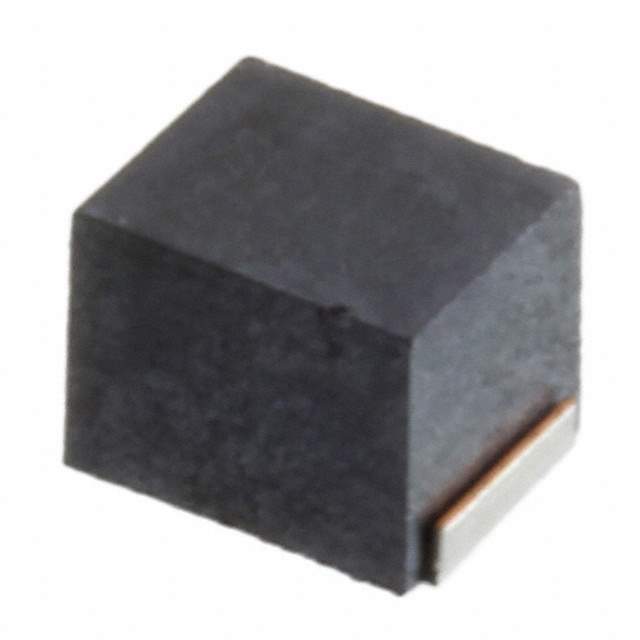

NLFV32T-100K-EF Real Image
Same model may have multiple batches, images only for reference.

NLFV32T-100K-EF

Part No NLFV32T-100K-EF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 10UH 250MA 200 MOHM
Datasheet
NLFV32T-100K-EF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 10μH
Tolerance ±10%
Current Rating 250mA
DC Resistance (DCR) 240 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 2.52MHz
Mounting SMD (SMT)
Case / Package 1210 (3225 Metric)
Height - Seated (Max) 0.094" (2.40mm)
Win Source Part Number 025570-NLFV32T-100K-EF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name NLFV
Introduction Date July 26, 2001
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian NLFV32T-100K-EF CAD Model

Description

The NLFV32T-100K-EF electronic component is manufactured by TDK Corporation and has a win source part number of 025570.

  • Win Source Part Number: 025570
  • Type: wirewound
  • Current Rating: 250mA
  • Inductance: 10μH
  • Height Seated: 0.094" (2.40mm)
  • Mounting Type: SMD (SMT)
  • Tolerance: ±10%
  • Material Core: ferrite
  • Category: inductors, coils, and chokes
  • Operating Temperature Range: -40°C to 105°C
  • Halogen-Free Compliant: yes
