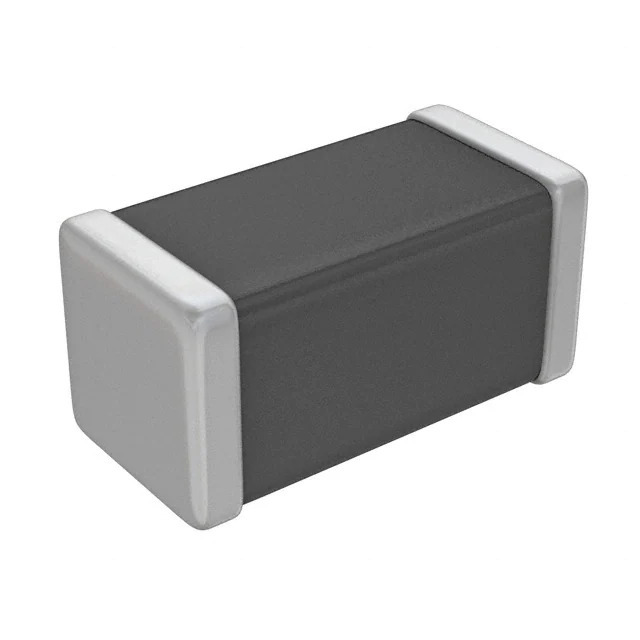

MPZ1005S600CTD25 TDK Corporation
Same model may have multiple batches, images only for reference.

MPZ1005S600CTD25

Part No MPZ1005S600CTD25
Manufacturer TDK Corporation
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 60 OHM 0402 1LN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Ferrite Beads and Chips
Mfr TDK Corporation
Series MPZ
Package Tape & Reel
Product Status Active
Filter Type Power Line
Number of Lines 1
Impedance @ Frequency 60 Ohms @ 100 MHz
Current Rating (Max) 1.5A
DC Resistance (DCR) (Max) 60mOhm
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Package / Case 0402 (1005 Metric)
Mounting Type Surface Mount
Height (Max) 0.022" (0.55mm)
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1369214-MPZ1005S600CTD25
Ultra Librarian 3D Model Ultra Librarian MPZ1005S600CTD25 CAD Model

Description

The TDK Corporation MPZ series ferrite bead is a surface mount filter designed for power line applications.

  • Size: 0402 (1005 Metric)
  • Height: 0.022" (0.55mm)
  • Filter Type: Power Line
  • Lines: 1
  • Impedance: 60 Ohms @ 100 MHz
  • Current Rating: 1.5A
  • DC Resistance: 60mOhm (Max)
  • Temperature Range: -55°C to 125°C
  • Mounting Type: Surface Mount
