Same model may have multiple batches, images only for reference.

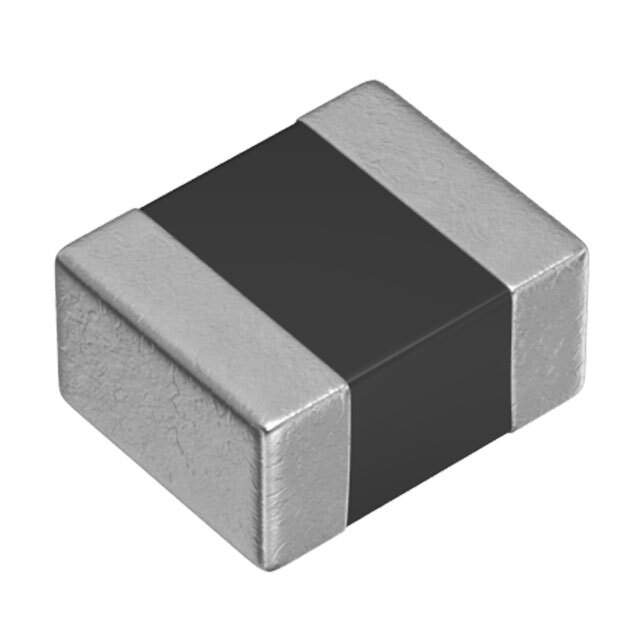

MLP2520S4R7ST0S1 Real Image
Same model may have multiple batches, images only for reference.

MLP2520S4R7ST0S1

Part No MLP2520S4R7ST0S1
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 4.7UH 1A 110 MOHM SMD / Inductor Power Shielded Multi-Layer 4.7uH 20% 2MHz Ferrite 1A 0.143Ohm DCR 1008 T/R
Datasheet
MLP2520S4R7ST0S1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Series MLP
Packaging Reel package
Type Multilayer
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±20%
Current Rating 1A
Shielding Shielded
DC Resistance (DCR) 143 mOhm Max
Operating Temperature Range -40°C ~ 125°C
Test Frequency 2MHz
Mounting SMD
Package 1008 (2520 Metric)
Manufacturer Package 1008 (2520 Metric)
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Maximum) 0.039" (1.00mm)
Win Source Part Number 788960-MLP2520S4R7ST0S1
Popularity Medium
Supply and Demand Status Limited
Family Name MLP
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian MLP2520S4R7ST0S1 CAD Model

Description

The TDK Corporation MLP2520S4R7ST0S1 is a multilayer inductor designed for use in a variety of different electronic applications.

  • Current Rating: 1A
  • Tolerance: ±20%
  • Shielded: Yes
  • Market Popularity: Medium
  • Supply and Demand: Limited
