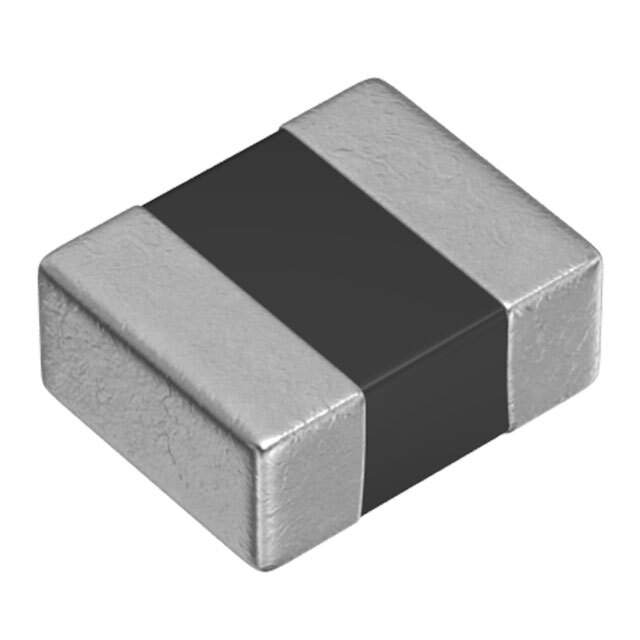

MLP2016S1R0MT0S1 Real Image
Same model may have multiple batches, images only for reference.

MLP2016S1R0MT0S1

Part No MLP2016S1R0MT0S1
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 1UH 1.4A 90 MOHM SMD
Datasheet
MLP2016S1R0MT0S1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Multilayer
Material - Core Ferrite
Inductance 1μH
Tolerance ±20%
Current Rating 1.4A
DC Resistance (DCR) 117 mOhm Max
Temperature Range - Operating -40°C to 125°C
Frequency - Test 2MHz
Mounting SMD (SMT)
Case / Package 0806 (2016 Metric)
Height - Seated (Max) 0.039" (1.00mm)
Win Source Part Number 023494-MLP2016S1R0MT0S1
Ultra Librarian 3D Model Ultra Librarian MLP2016S1R0MT0S1 CAD Model

Description

The TDK Corporation 023494-MLP2016S1R0MT0S1 is a ferrite multilayer inductor that has a current rating of 1.4A and an inductance of 1μH.

  • Manufacturer: It is manufactured by TDK Corporation.
  • Packaging: and has a packaging reel-TR.
  • Height: This product has a height of 0.039 inches.
  • Mounting Type: and a mounting type of SMD(SMT).
  • Tolerance: It has a tolerance of ±20%.
  • DC Resistance: and a DC resistance (DCR) of 117 mOhm Max.
  • Frequency: The frequency of this product is self-resonant.
  • Frequency Test: and the frequency test is 2MHz.
  • Reliability: It is a reliable product that can be used in various electronic devices.
