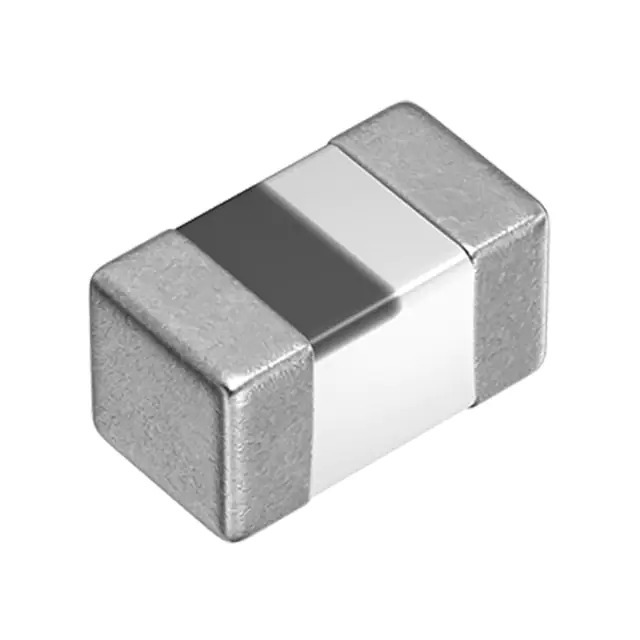

Same model may have multiple batches, images only for reference.
MLG0402P3N2BT000 TDK Corporation
Same model may have multiple batches, images only for reference.

MLG0402P3N2BT000

Part No MLG0402P3N2BT000
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 3.2NH 180MA 1.1OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr TDK Corporation
Series MLG-P
Package Tape & Reel
Product Status Active
Type Multilayer
Material - Core Non-Magnetic
Inductance 3.2 nH
Tolerance ±0.1nH
Current Rating (Amps) 180 mA
Current - Saturation (Isat) -
Shielding Unshielded
DC Resistance (DCR) 1.1Ohm Max
Q @ Freq 8 @ 500MHz
Frequency - Self Resonant 7GHz
Ratings -
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 500 MHz
Mounting Type Surface Mount
Package / Case 01005 (0402 Metric)
Supplier Device Package 01005 (0402 Metric)
Size / Dimension 0.016" L x 0.008" W (0.40mm x 0.20mm)
Height - Seated (Max) 0.009" (0.22mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1369496-MLG0402P3N2BT000
Ultra Librarian 3D Model Ultra Librarian MLG0402P3N2BT000 CAD Model

Description

The MLG0402P3N2BT000 is a fixed inductor from TDK Corporation's MLG-P series.

  • Inductance: 3.2 nH
  • Current Rating: 180 mA
  • Mounting Type: Surface Mount
  • Temperature Range: -55°C to 125°C
  • Packaging: Tape & Reel (TR)
  • Size / Dimension: 0.016" L x 0.008" W (0.40mm x 0.20mm)
  • Tolerance: ±0.1nH
  • Q @ Freq: 8 @ 500MHz
  • ECCN: EAR99
  • REACH Status: Unaffected
