Same model may have multiple batches, images only for reference.

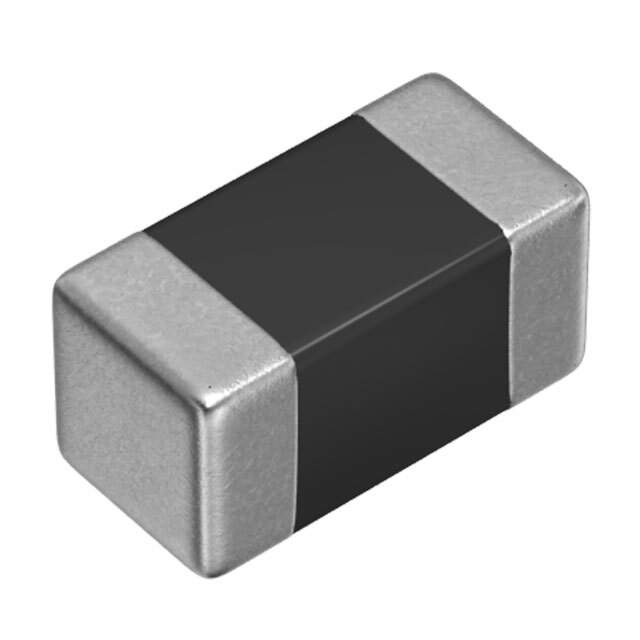

MLF1005AR82KT Real Image
Same model may have multiple batches, images only for reference.

MLF1005AR82KT

Part No MLF1005AR82KT
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 820NH 10MA 900 MOHM
Datasheet
MLF1005AR82KT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Type Multilayer
Material - Core Ferrite
Inductance 820nH
Tolerance ±10%
Current Rating 10mA
DC Resistance (DCR) 900 mOhm Max
Q @ Freq 25 @ 10MHz
Frequency - Self Resonant 130MHz
Temperature Range - Operating -40°C to 85°C
Frequency - Test 10MHz
Mounting SMD (SMT)
Case / Package 0402 (1005 Metric)
Height - Seated (Max) 0.022" (0.55mm)
Win Source Part Number 099181-MLF1005AR82KT
Ultra Librarian 3D Model Ultra Librarian MLF1005AR82KT CAD Model

Description

TDK Corporation multilayer inductor is a type of inductor that has a current rating of 10mA and an inductance of 820nH. It has a height of 0.022 inches (0.55mm) when seated and is mounted through SMD (SMT). The tolerance of this inductor is ±10% and the core material is ferrite.

  • Current Rating: 10mA
  • Inductance: 820nH
  • Height: 0.022 inches (0.55mm)
  • Tolerance: ±10%
  • Core Material: ferrite
  • Q @ Freq: 25 @ 10MHz
  • Self-Resonant Frequency: 130MHz
  • Test Frequency: 10MHz
  • DC Resistance (DCR): 900 mOhm Max

This inductor is available in a 0402 (1005 Metric) case/package.
