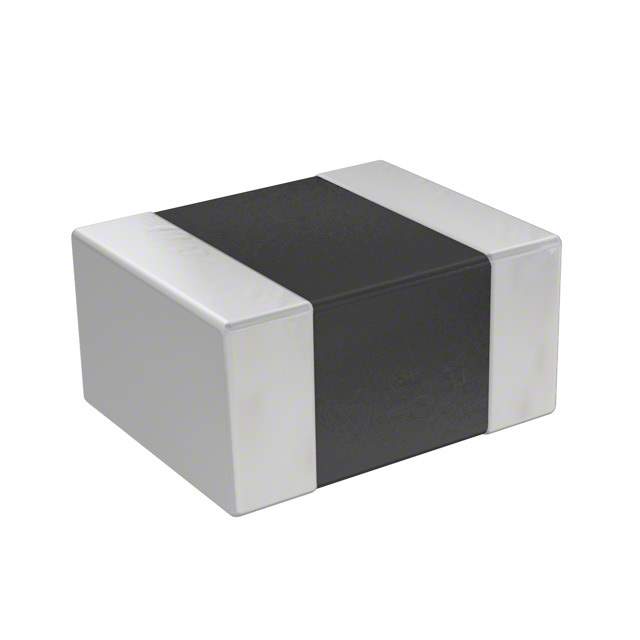

MLD2012SR47TTD25 Real Image1 MLD2012SR47TTD25 Real Image2
Same model may have multiple batches, images only for reference.
MLD2012SR47TTD25 Real Image1 MLD2012SR47TTD25 Real Image2
MLD2012SR47TTD25 Real Image1 MLD2012SR47TTD25 Real Image2
Same model may have multiple batches, images only for reference.

MLD2012SR47TTD25

Part No MLD2012SR47TTD25
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 470NH 1.2A 120MOHM SMD / 470 nH Shielded Multilayer Inductor 1.2 A 120mOhm Max 0805 (2012 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series MLD
Package Tape & Reel
Type Multilayer
Material - Core Ferrite
Inductance 470 nH
Tolerance ±20%
Current Rating (Amps) 1.2 A
Current - Saturation (Isat) -
Shielding Shielded
DC Resistance (DCR) 120mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 2 MHz
Features -
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805 (2012 Metric)
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.022" (0.55mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 4,000 pcs
Win Source Part Number 1382898-MLD2012SR47TTD25
Ultra Librarian 3D Model Ultra Librarian MLD2012SR47TTD25 CAD Model

Description

The MLD2012SR47TTD25 is a multilayer fixed inductor from the MLD series.

  • Size: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Height: 0.022" (0.55mm)
  • Inductance: 470 nH
  • Shielding: Shielded
  • Tolerance: ±20%
  • DC Resistance (DCR): 120mOhm (Max)
  • Mounting Type: Surface Mount
  • Package: 0805 (2012 Metric)
  • Operating Temperature: -40°C to 125°C
  • AEC-Q200: Yes
  • Manufacturer: TDK Corporation
  • Current Rating: 1.2A
  • Standard Package: 4,000 pieces
