Same model may have multiple batches, images only for reference.

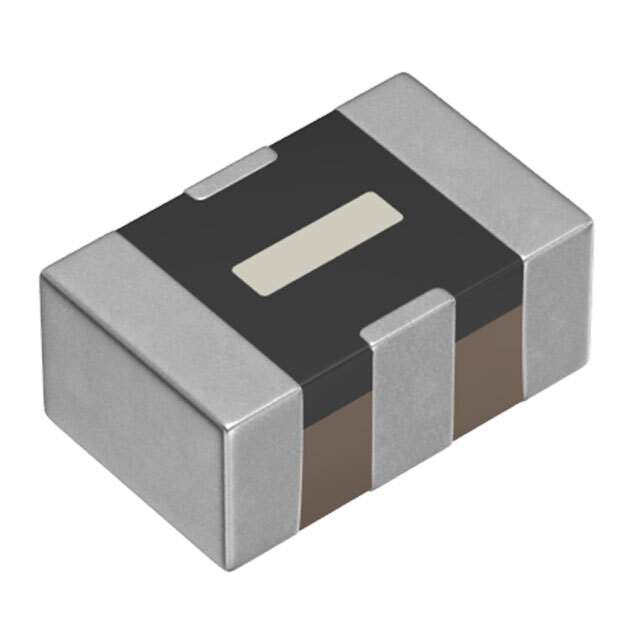

MEM2012S201RT001 Real Image
Same model may have multiple batches, images only for reference.

MEM2012S201RT001

Part No MEM2012S201RT001
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(T) 200MHZ SMD
Datasheet
MEM2012S201RT001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 3rd
Technology LC (T-Type)
Number of Channels 1
Center / Cutoff Frequency 200MHz (Cutoff)
Attenuation Value 30dB @ 530MHz to 2.5GHz
Current 250mA
ESD Protection No
Temperature Range - Operating -40°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 10V
Mounting SMD (SMT)
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height 0.037" (0.95mm)
Win Source Part Number 058450-MEM2012S201RT001
Ultra Librarian 3D Model Ultra Librarian MEM2012S201RT001 CAD Model

Description

The TDK Corporation MEM2012S201RT001 is a low pass filter that has been designed for data lines in mobile devices.

  • Voltage Rating: 10V
  • Current Rating: 250mA
  • Attenuation Value: 30dB @ 530MHz to 2.5GHz
  • Cutoff Frequency: 200MHz
  • Filter Order: 3rd
  • Technology: LC (T-Type)
  • Package Type: reel - TR
  • Mounting: SMD (SMT)
  • Category: filter
  • Status: currently active
  • Temperature Range: -40°C to 85°C
