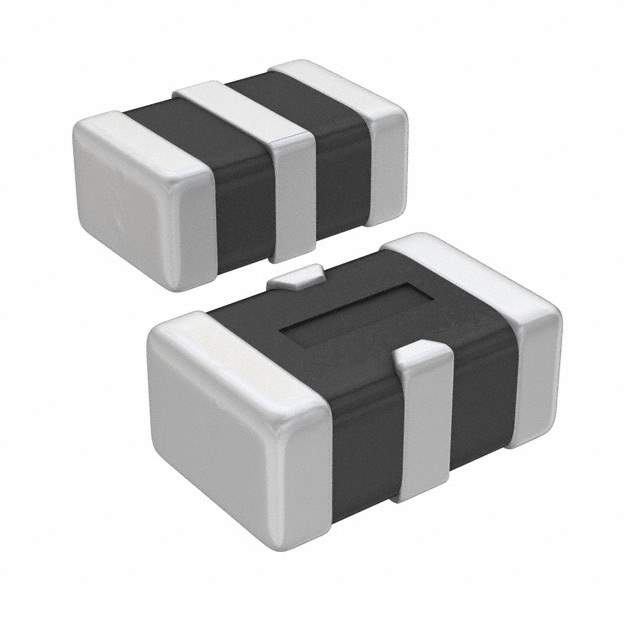

MEM2012D301R Real Image
Same model may have multiple batches, images only for reference.

MEM2012D301R

Part No MEM2012D301R
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC 300MHZ SMD / LC EMI Filter 2nd Order Low Pass 1 Channel 200 mA 0805 (2012 Metric), 3 PC Pad
Datasheet
MEM2012D301R Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>EMI/RFI Filters (LC, RC Networks)
Mfr TDK Corporation
Series MEM
Package Tape & Reel
Product Status Obsolete
Type Low Pass
Filter Order 2nd
Technology LC
Number of Channels 1
Center / Cutoff Frequency 300MHz (Cutoff)
Attenuation Value 20dB @ 900MHz ~ 2GHz
Current 200 mA
ESD Protection No
Temperature Range - Operating -40°C ~ 85°C
Applications Data Lines for Mobile Devices
Voltage - Rated 25V
Mounting SMD (SMT)
Package / Case 0805 (2012 Metric), 3 PC Pad
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height 0.033" (0.85mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Other Names 445-3354-6,445-3354-2,445-3354-1
Standard Package 4,000
Win Source Part Number 1078081-MEM2012D301R
Ultra Librarian 3D Model Ultra Librarian MEM2012D301R CAD Model

Description

The MEM2012D301R is a low pass EMI/RFI filter with a package of tape and reel.

  • Type: low pass EMI/RFI filter
  • Package: tape and reel
  • Application: data lines for mobile devices
  • Voltage Rating: 25V
  • Filter Order: 2nd
  • Center/Cutoff Frequency: 300MHz (cutoff)
  • Attenuation: 20dB @ 900MHz ~ 2GHz
  • Technology: LC
  • Height: 0.033" (0.85mm)
  • Current: 200mA
  • Channels: One
  • Mounting: SMD (SMT)
  • Standard Package: 4,000
  • Temperature Range: -40°C ~ 85°C
  • Status: obsolete
