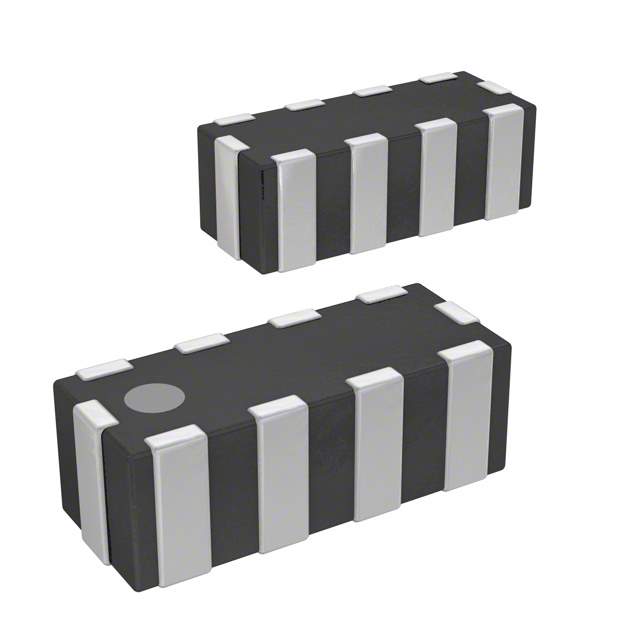

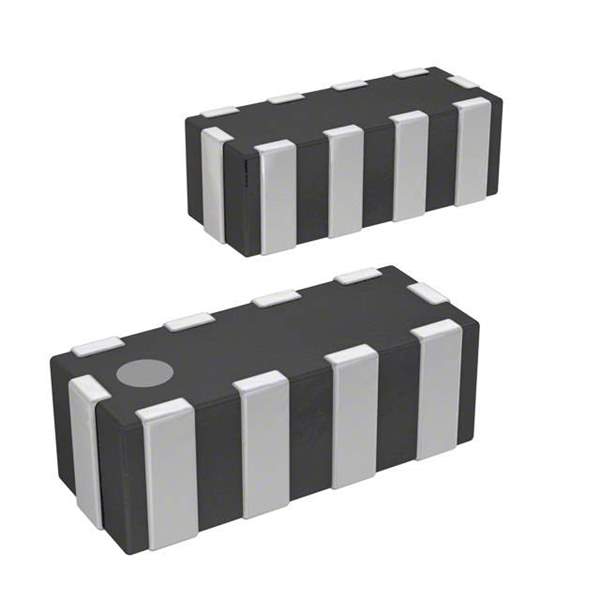

MEA2010PE220T001 Real Image
Same model may have multiple batches, images only for reference.

MEA2010PE220T001

Part No MEA2010PE220T001
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC 22PF 250MHZ SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 2nd
Technology LC
Number of Channels 4
Center / Cutoff Frequency 250MHz (Cutoff)
Attenuation Value 20dB @ 470MHz to 3GHz
Current 100mA
Values C = 22pF
ESD Protection No
Temperature Range - Operating -40°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 6.3V
Mounting SMD (SMT)
Dimension 0.079" L x 0.039" W (2.00mm x 1.00mm)
Height 0.031" (0.79mm)
Win Source Part Number 023177-MEA2010PE220T001
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MEA2010PE220T001 CAD Model

Description

The TDK Corporation 023177-MEA2010PE220T001 is a low-pass filter that has a center/cutoff frequency of 250MHz (cutoff).

  • Center/Cutoff Frequency: 250MHz (cutoff)
  • Voltage Rating: 6.3V
  • Current Rating: 100mA
  • Technology: LC technology
  • Filter Order: 2nd order
  • Height: 0.031" (0.79mm)
  • Mounting: surface mount technology
  • Channels: 4
  • Attenuation Value: 20dB @ 470MHz to 3GHz
  • Commonly used in: data lines for mobile devices
  • Operating Temperature Range: -40°C to 85°C
