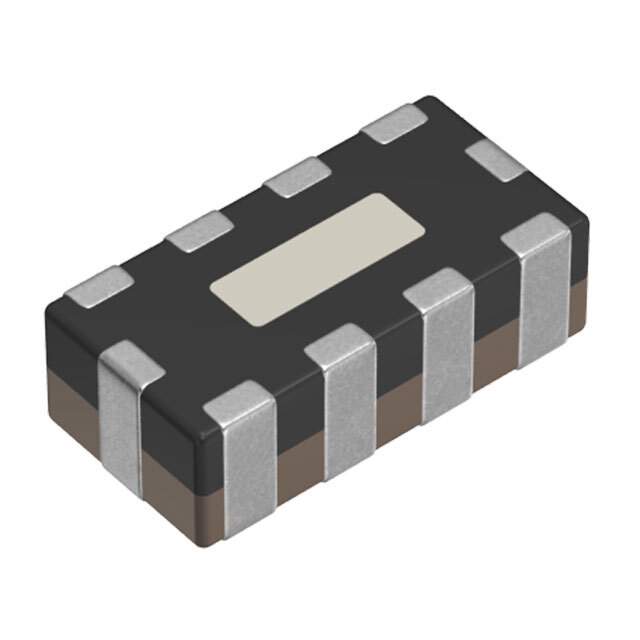

MEA1608PH270TA0G Real Image
Same model may have multiple batches, images only for reference.

MEA1608PH270TA0G

Part No MEA1608PH270TA0G
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(PI) 27PF 410MHZ SMD
Datasheet
MEA1608PH270TA0G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 3rd
Technology LC (Pi)
Number of Channels 4
Center / Cutoff Frequency 410MHz (Cutoff)
Attenuation Value 20dB @ 800MHz to 3GHz
Current 100mA
Values C = 27pF
ESD Protection No
Temperature Range - Operating -40°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 6.3V
Mounting SMD (SMT)
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height 0.024" (0.60mm)
Win Source Part Number 041587-MEA1608PH270TA0G
Ultra Librarian 3D Model Ultra Librarian MEA1608PH270TA0G CAD Model

Description

The TDK Corporation MEA1608PH270TA0G is a low pass filter with 4 channels and an attenuation value of 20dB @ 800MHz to 3GHz.

  • Channels: 4
  • Attenuation Value: 20dB @ 800MHz to 3GHz
  • Voltage Rating: 6.3V
  • Suitable for: data lines for mobile devices
  • Mounting: surface mount
  • Technology: LC (Pi)
  • Dimension: 0.063" L x 0.031" W (1.60mm x 0.80mm)
  • Height: 0.024" (0.60mm)
  • RoHS Compliant: Yes
  • Temperature Range: -40°C to 85°C
