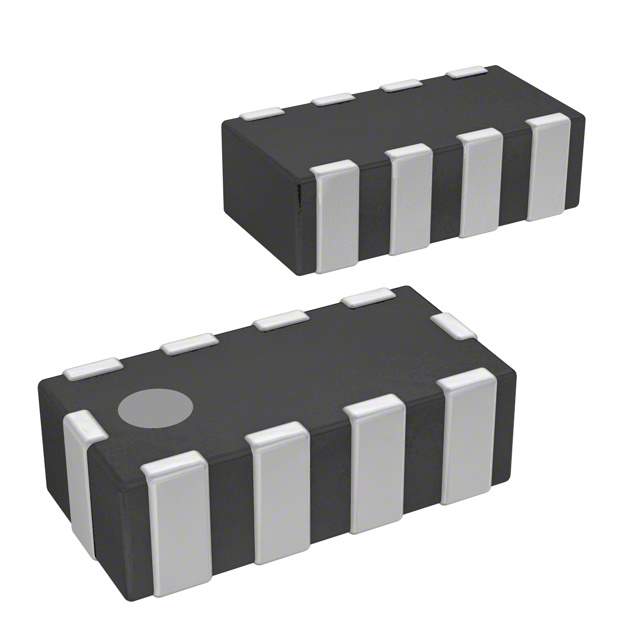

MEA1608LC100T001 Real Image
Same model may have multiple batches, images only for reference.

MEA1608LC100T001

Part No MEA1608LC100T001
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC 10PF 270MHZ SMD
Datasheet
MEA1608LC100T001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 2nd
Technology LC
Number of Channels 4
Center / Cutoff Frequency 270MHz (Cutoff)
Attenuation Value 20dB @ 800MHz to 3GHz
Current 100mA
Values C = 10pF
ESD Protection No
Temperature Range - Operating -40°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 6.3V
Mounting SMD (SMT)
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height 0.024" (0.60mm)
Win Source Part Number 023173-MEA1608LC100T001
Ultra Librarian 3D Model Ultra Librarian MEA1608LC100T001 CAD Model

Description

The TDK Corporation low pass filter is designed for data lines in mobile devices.

  • Voltage Rating: 6.3V
  • Current: 100mA
  • Channels: 4
  • Attenuation Value: 20dB @ 800MHz to 3GHz
  • Cutoff Frequency: 270MHz
  • Dimension: 0.063" L x 0.031" W (1.60mm x 0.80mm)
  • Mounting: SMD (SMT) technology
  • Technology: LC
  • ESD Protection: No
  • Category: Filters
  • Temperature Range: -40°C to 85°C
  • Manufacturer: TDK Corporation
  • Win Source Part Number: 023173-MEA1608LC100T001
