Same model may have multiple batches, images only for reference.

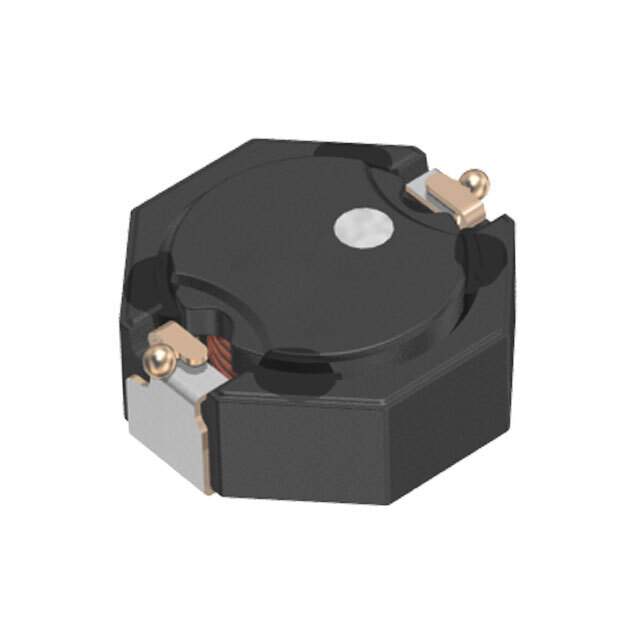

LTF5022T-6R8N1R6-LC Real Image
Same model may have multiple batches, images only for reference.

LTF5022T-6R8N1R6-LC

Part No LTF5022T-6R8N1R6-LC
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 6.8UH 2.1A 110MOHM SMD  /  6.8 µH Shielded Drum Core, Wirewound Inductor 2.1 A 110mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series LTF5022T
Package Tape & Reel
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 6.8 µH
Tolerance ±30%
Current Rating (Amps) 2.1 A
Current - Saturation (Isat) 1.6A
Shielding Shielded
DC Resistance (DCR) 110mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.205" L x 0.197" W (5.20mm x 5.00mm)
Height - Seated (Max) 0.087" (2.20mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 445-16229-6,445-16229-1,445-16229-2,LTF5022T-6R8N1R6-LC-ND
Standard Package 500
Win Source Part Number 986680-LTF5022T-6R8N1R6-LC
Ultra Librarian 3D Model Ultra Librarian LTF5022T-6R8N1R6-LC CAD Model

Description

The LTF5022T-6R8N1R6-LC is a fixed inductor electronic component manufactured by TDK Corporation. The Win Source Part Number for this product is 986680-LTF5022T-6R8N1R6-LC. This electronic component is designed to meet the requirements of various electronic devices. It is a reliable and high-quality product that can be used in different electronic applications. The product is a drum core, wirewound type inductor with a shielding feature.
