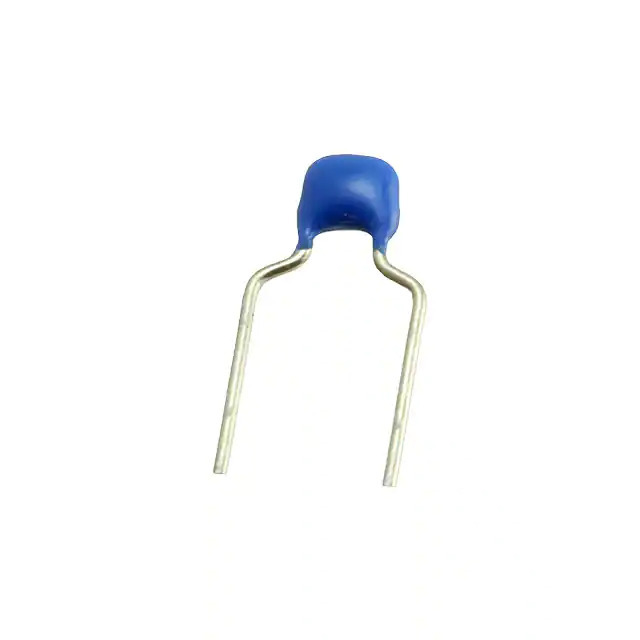

FG24C0G2A223JRT06 TDK Corporation
Same model may have multiple batches, images only for reference.

FG24C0G2A223JRT06

Part No FG24C0G2A223JRT06
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 0.022UF 100V C0G RADIAL / 0.022 µF ±5% 100V Ceramic Capacitor C0G, NP0 Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr TDK Corporation
Series FG
Product Status Active
Capacitance 0.022 µF
Tolerance ±5%
Voltage - Rated 100V
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 125°C
Features -
Ratings -
Applications General Purpose
Failure Rate -
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 0.177" L x 0.118" W (4.50mm x 3.00mm)
Height - Seated (Max) 0.217" (5.50mm)
Thickness (Max) -
Lead Spacing 0.197" (5.00mm)
Lead Style Formed Leads - Kinked
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1360136-FG24C0G2A223JRT06
Ultra Librarian 3D Model Ultra Librarian FG24C0G2A223JRT06 CAD Model

Description

The TDK Corporation FG series ceramic capacitor is a general purpose capacitor with a capacitance of 0.022 µF and a voltage rating of 100V.

  • Capacitance: 0.022 µF
  • Voltage Rating: 100V
  • Tolerance: ±5%
  • Operating Temperature: -55°C to 125°C
  • Package: Radial
  • Mounting Type: Through Hole
  • Lead Spacing: 0.197" (5.00mm)
  • Size/Dimension: 0.177" L x 0.118" W (4.50mm x 3.00mm)
  • Height Seated: 0.217" (5.50mm)
  • Series: FG
  • Model: FG24C0G2A223JRT06
  • Packaging: Bulk
  • Status: Active
  • ECCN: EAR99
  • Temperature Coefficient: C0G, NP0
  • Failure Rate: Not Specified
  • Thickness: Not Specified
