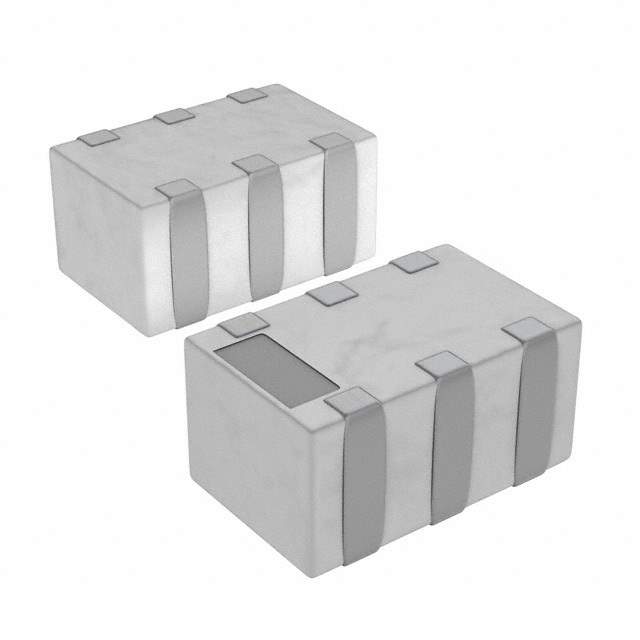

DPX165900DT-8025A1 Real Image
Same model may have multiple batches, images only for reference.

DPX165900DT-8025A1

Part No DPX165900DT-8025A1
Manufacturer TDK Corporation
Catalog RF Multiplexers
Description RF DIPLEXER 2.45GHZ/5.5GHZ 0805 / Multilayer Diplexer
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK Corporation
Packaging Reel
Type Diplexer
Frequency Bands (Low / High) 2.4GHz ~ 2.5GHz / 5.1GHz ~ 5.9GHz
Low Band Attenuation (min / max dB) 18.00dB / 26.00dB
High Band Attenuation (min / max dB) 23.00dB / 31.00dB
Return Loss (Low Band / High Band) 22.0dB / 12.0dB
Mounting Style SMD
Manufacturer Package 0805 (2012 Metric), 6 PC Pad
Manufacturer Pack Quantity 4,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801675-DPX165900DT-8025A1
Ultra Librarian 3D Model Ultra Librarian DPX165900DT-8025A1 CAD Model

Description

The DPX165900DT-8025A1 is a diplexer manufactured by TDK Corporation.

  • Frequency Bands: 2.4 GHz to 2.5 GHz and 5.1 GHz to 5.9 GHz
  • Low Band Attenuation: 18.00 dB to 26.00 dB
  • High Band Attenuation: 23.00 dB to 31.00 dB
  • Return Loss (Low Band): 22.0 dB
  • Return Loss (High Band): 12.0 dB
  • Mounting Style: Surface Mount
  • Package: Reel
  • Manufacturer Pack Quantity: 4,000
