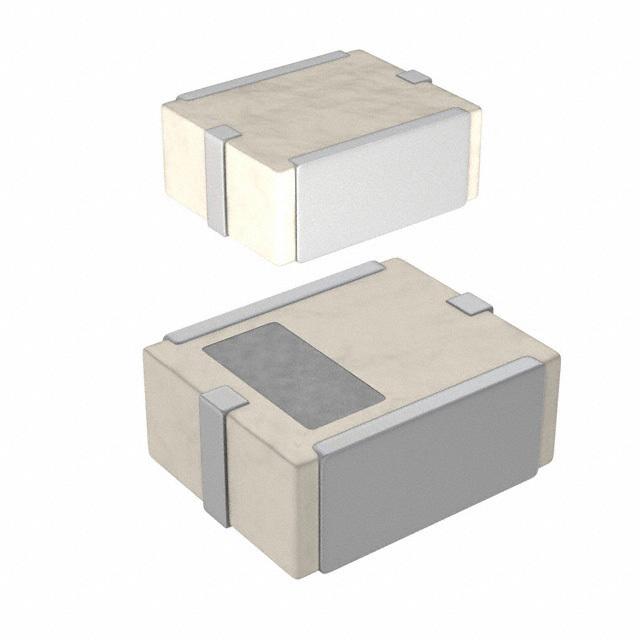

Same model may have multiple batches, images only for reference.
DEA252450BT-2109C3 TDK Corporation
Same model may have multiple batches, images only for reference.

DEA252450BT-2109C3

Part No DEA252450BT-2109C3
Manufacturer TDK Corporation
Catalog RF Filters
Description RF FILTER BAND PASS 2.45GHZ 1008 / 2.45GHz Center Frequency Band Pass RF Filter (Radio Frequency) Bandwidth 1008 (2520 Metric), 4 PC Pad
Datasheet
DEA252450BT-2109C3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - RF Filters
Mfr TDK Corporation
Series DEA
Package Tape & Reel
Product Status Obsolete
Frequency 2.45GHz Center
Filter Type Band Pass
Mounting Type Surface Mount
Package / Case 1008 (2520 Metric), 4 PC Pad
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height (Max) 0.039" (1.00mm)
Standard Package 2,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 107584-DEA252450BT-2109C3
Ultra Librarian 3D Model Ultra Librarian DEA252450BT-2109C3 CAD Model

Description

Product Overview

The DEA252450BT-2109C3 is a high-performance electronic component designed for a wide range of applications. With its robust build and advanced technology, it meets the needs of modern electronics design.

  • Smartphones and Mobile Devices
  • Wearable Technology
  • Sensor Modules

Features and Benefits

  • Compact size for space-constrained designs
  • High precision and reliability
  • Compatible with various circuit design requirements

Additional Details

This component ensures stable performance even in challenging conditions, making it an excellent choice for cutting-edge electronic projects.
