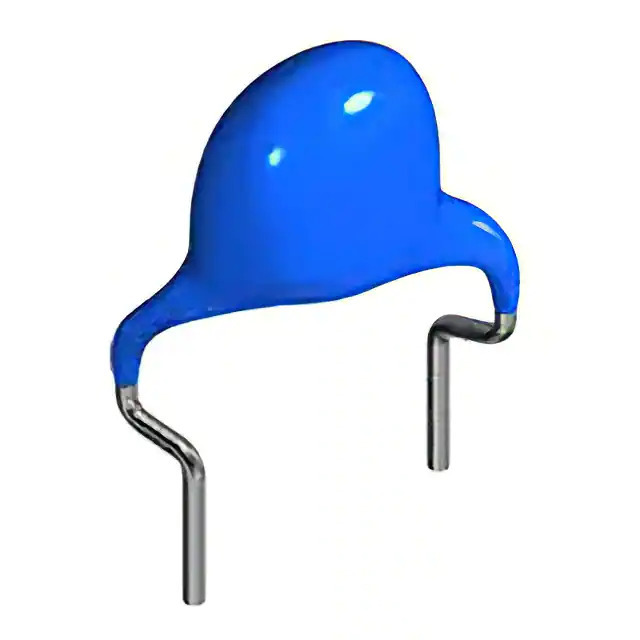

Same model may have multiple batches, images only for reference.
CS75-B2GA471KYGKA TDK Corporation
Same model may have multiple batches, images only for reference.

CS75-B2GA471KYGKA

Part No CS75-B2GA471KYGKA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 470PF 300/440VAC / 470 pF ±10% 300VAC/440VAC Ceramic Capacitor B Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr TDK Corporation
Series CS
Package Bulk
Product Status Obsolete
Capacitance 470 pF
Tolerance ±10%
Voltage - Rated 300VAC/440VAC
Temperature Coefficient B
Temperature Range - Operating -25°C ~ 125°C
Features High Voltage
Ratings X1, Y2
Applications Safety
Failure Rate -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.295" Dia (7.50mm)
Height - Seated (Max) 0.453" (11.50mm)
Thickness (Max) -
Lead Spacing 0.295" (7.50mm)
Lead Style Formed Leads - Kinked
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1360510-CS75-B2GA471KYGKA
Ultra Librarian 3D Model Ultra Librarian CS75-B2GA471KYGKA CAD Model

Description

The CS series from TDK Corporation is a radial, disc ceramic capacitor.

  • Capacitance: 470 pF
  • Tolerance: ±10%
  • Voltage - Rated: 300VAC/440VAC
  • Application: Safety
  • Ratings: X1, Y2
  • Lead Spacing: 0.295" (7.50mm)
  • Size / Dimension: 0.295" Dia (7.50mm)
  • Mounting Type: Through Hole
  • Height - Seated (Max): 0.453" (11.50mm)
  • Product Status: Obsolete
  • Packaging: Bulk
  • Application: General Purpose
