Same model may have multiple batches, images only for reference.

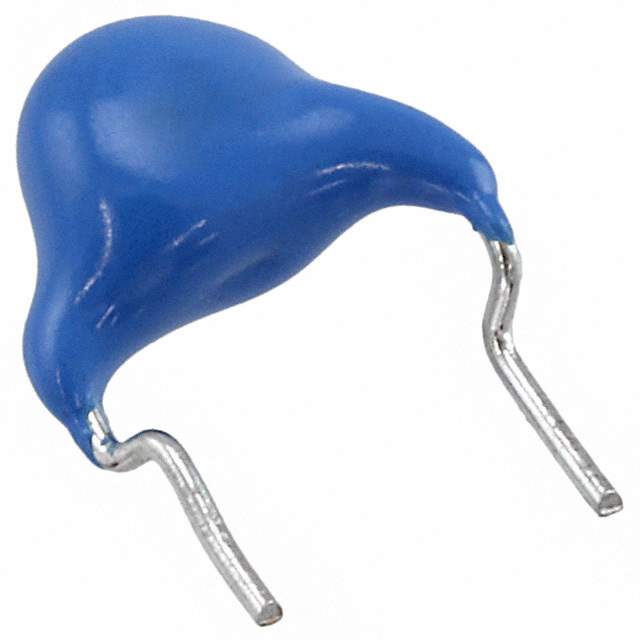

CS70-B2GA101KYNS Real Image
Same model may have multiple batches, images only for reference.

CS70-B2GA101KYNS

Part No CS70-B2GA101KYNS
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 100PF 250VAC RADIAL / Cap Ceramic Single Suppression X1/Y2 100pF 250VAC B 10% (7 X 7mm) Radial 7.5mm 105°C Bulk
Datasheet
CS70-B2GA101KYNS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer TDK Corporation
Series CS
Packaging Bulk
Part Status Obsolete(EOL)
Capacitance 100pF
Tolerance ±10%
Voltage Rating DC 250VAC
Temperature Coefficient B
Operating Temperature Range -25°C ~ 105°C
Features High Voltage
Ratings X1, Y2
Applications Safety
Mounting Style Through Hole
Package Radial, Disc
Dimension 0.276" Dia (7.00mm)
Height - Seated (Maximum) 0.433" (11.00mm)
Lead Spacing 0.295" (7.50mm)
Lead Style Straight
Win Source Part Number 771832-CS70-B2GA101KYNS
Popularity Medium
Supply and Demand Status Balance
Family Name CS
Introduction Date July 31, 2001
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian CS70-B2GA101KYNS CAD Model

Description

The CS70-B2GA101KYNS electronic component is a radial, disc capacitor manufactured by TDK Corporation.

  • Status: Obsolete (EOL)
  • Popularity: Medium
  • Supply and Demand Status: Balanced
  • Capacitance: 100pF
  • Voltage Rating DC: 250VAC
  • Tolerance: ±10%
  • Application: Safety
  • Category: Capacitors
