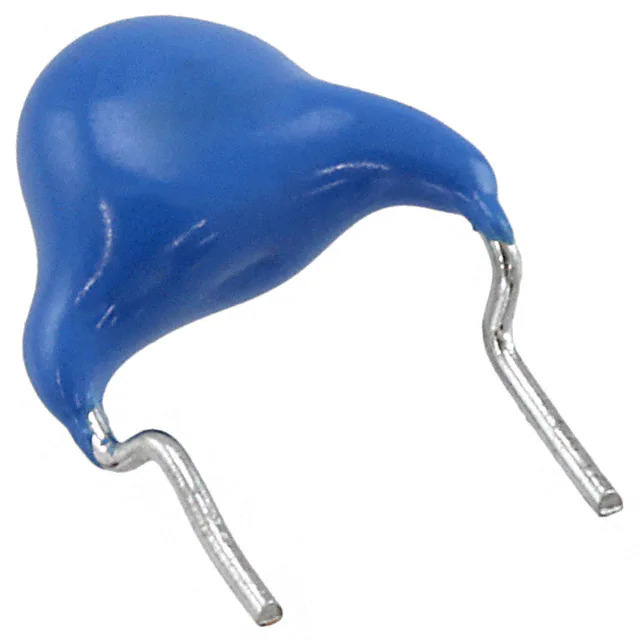

Same model may have multiple batches, images only for reference.

CS65ZU2GA102MYGKA

Name: CS65ZU2GA102MYGKA
Brand: TDK Corporation
SKU: 1360413
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	CS65ZU2GA102MYGKA
Manufacturer	TDK Corporation
Catalog	Ceramic Capacitors
Description	CAP CER 1000PF 300/440VAC Z5U / 1000 pF ±20% 300VAC/440VAC Ceramic Capacitor Z5U Radial, Disc
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Ceramic Capacitors
Mfr	TDK Corporation
Series	CS
Package	Bulk
Product Status	Obsolete
Capacitance	1000 pF
Tolerance	±20%
Voltage - Rated	300VAC/440VAC
Temperature Coefficient	Z5U
Temperature Range - Operating	-25°C ~ 125°C
Features	High Voltage
Ratings	X1, Y2
Applications	Safety
Failure Rate	-
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.276" Dia (7.00mm)
Height - Seated (Max)	0.433" (11.00mm)
Thickness (Max)	-
Lead Spacing	0.295" (7.50mm)
Lead Style	Formed Leads - Kinked
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8532.24.0060
Win Source Part Number	1360413-CS65ZU2GA102MYGKA
Ultra Librarian 3D Model	Ultra Librarian CS65ZU2GA102MYGKA CAD Model

Alternative Products

Description

The CS65ZU2GA102MYGKA is a high voltage ceramic capacitor manufactured by TDK Corporation.

Series: CS
Package: Radial, Disc
Capacitance: 1000 pF
Voltage Rating: 300VAC/440VAC
Operating Temperature: -25°C to 125°C
Tolerance: ±20%
Size: 0.276" Dia (7.00mm)
Height: 0.433" (11.00mm)
Mounting Type: Through-Hole
Leads: Formed
RoHS Compliant: Yes
ECCN: EAR99
