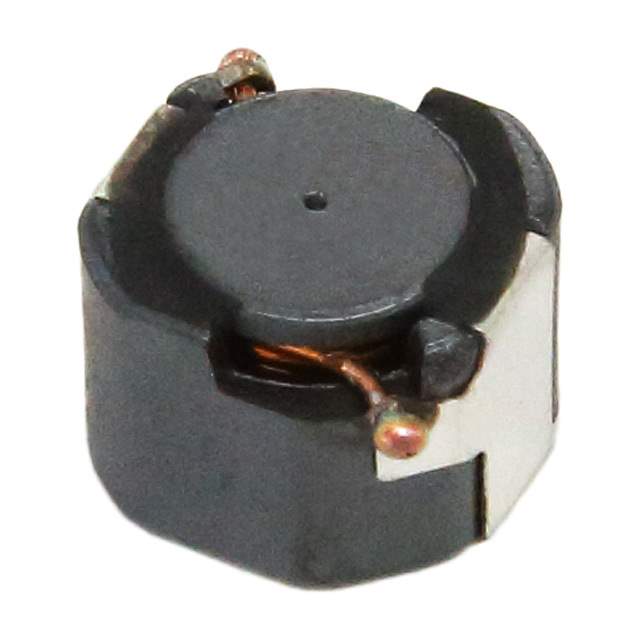

CLF6045T-330M-D Real Image
Same model may have multiple batches, images only for reference.

CLF6045T-330M-D

Part No CLF6045T-330M-D
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 33UH 1.5A 103 MOHM SMD / Inductor Power Shielded Wirewound 33uH 20% 100KHz Ferrite 1.5A 0.1236Ohm DCR Automotive T/R
Datasheet
CLF6045T-330M-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Series CLF-D
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 33μH
Tolerance ±20%
Current Rating 1.5A
Current - Saturation 1.07A
Shielding Shielded
DC Resistance (DCR) 123.6 mOhm Max
Ratings AEC-Q200
Operating Temperature Range -40°C ~ 105°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.244" L x 0.232" W (6.20mm x 5.90mm)
Height - Seated (Maximum) 0.177" (4.50mm)
Win Source Part Number 771589-CLF6045T-330M-D
Popularity Medium
Supply and Demand Status Limited
Family Name CLF-D
ECCN EAR99
Country of Origin China, Philippines
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian CLF6045T-330M-D CAD Model

Description

The TDK Corporation 771589-CLF6045T-330M-D is a wirewound inductor that belongs to the CLF-D series.

  • Supply and Demand Status: Limited
  • Series: CLF-D
  • Shielding: Shielded
  • Ratings: AEC-Q200
  • Operating Temperature: -40°C to 105°C
