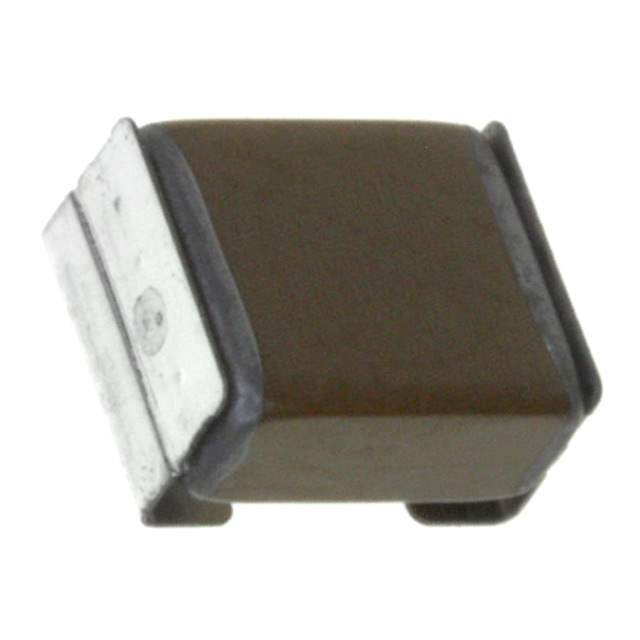

Same model may have multiple batches, images only for reference.

CKG57KX7T2E225M335JH

Name: CKG57KX7T2E225M335JH
Brand: TDK Corporation
SKU: 1052129
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	CKG57KX7T2E225M335JH
Manufacturer	TDK Corporation
Catalog	Ceramic Capacitors
Description	CAP CER 2.2UF 250V X7T SMD / 2.2 µF ±20% 250V Ceramic Capacitor X7T SMD, J-Lead
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Ceramic Capacitors
Mfr	TDK Corporation
Series	MEGACAP, CKG
Package	Tape & Reel
Capacitance	2.2 µF
Tolerance	±20%
Voltage - Rated	250V
Temperature Coefficient	X7T
Temperature Range - Operating	-55°C ~ 125°C
Features	Low ESL
Applications	SMPS Filtering, Bypass, Decoupling
Mounting Type	Surface Mount, MLCC
Package / Case	SMD, J-Lead
Dimension	0.236" L x 0.197" W (6.00mm x 5.00mm)
Thickness (Max)	0.138" (3.50mm)
Lead Style	J-Lead
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.24.0020
Other Names	445-7102-2,445-7102-1,CKG57KX7T2E225M,445-7102-6,CKG57KX7T2E225MT009W
Standard Package	1,000
Win Source Part Number	1052129-CKG57KX7T2E225M335JH
Ultra Librarian 3D Model	Ultra Librarian CKG57KX7T2E225M335JH CAD Model

Alternative Products

Description

The TDK Corporation MEGACAP, CKG series capacitor is a ceramic capacitor designed for SMPS filtering, bypass, and decoupling applications.

Series: MEGACAP, CKG
Applications: SMPS filtering, bypass, and decoupling
Packaging: Tape & reel
Standard Package: 1,000
Capacitance: 2.2 µF
Tolerance: ±20%
Voltage Rated: 250V
Temperature Coefficient: X7T
Thickness (Max): 0.138" (3.50mm)
Mounting Type: Surface Mount, MLCC
Package/Case: SMD, J-Lead
Temperature Range: -55°C ~ 125°C
Dimension: 0.236" L x 0.197" W (6.00mm x 5.00mm)
MSL Level: 1 (unlimited)
REACH Status: REACH unaffected
HTSUS: 8532.24.0020
Manufacturer: TDK Corporation
